| Form Factor | 3.5” (5.8-in * 4.0-in, 148 * 102mm) |
| Processor System | Intel® Gemini Lake-R SoC Processor |
| AMI Flash ROM BIOS |
| Expansion Slot | M.2 E-key (2230) Support CNVi, USB2.0 & PCIex1 interface |
| 1* full size Mini-PCIe Support USB2.0 & PCIex1 interface |
| Memory | 2* SO-DIMM DDR4 2400MHz Dual CH SDRAM non-ECC up to 8GB |
| Graphics | Intel® HD Graphics, shared memory |
| 1* eDP (Max Resolution: 4096×2304@60Hz) |
| 2* HDMI 2.0 (Max Resolution: 4096×2160@60Hz) |
| Support Triple Displays |
| Ethernet | 1* Intel® i211AT GbE |
| Audio | 6 channel HD audio: Realtek ALC662VD |
| 3W AMP speaker |
| Storage | 1* SATAIII |
| 32GB onboard eMMC (JNF931G32-4125) |
| M.2 M-key (2242/2280) Support PCIex2(NVMe) & SATA interface |
| Integrated Storage | 1* 32GB eMMC (option) |

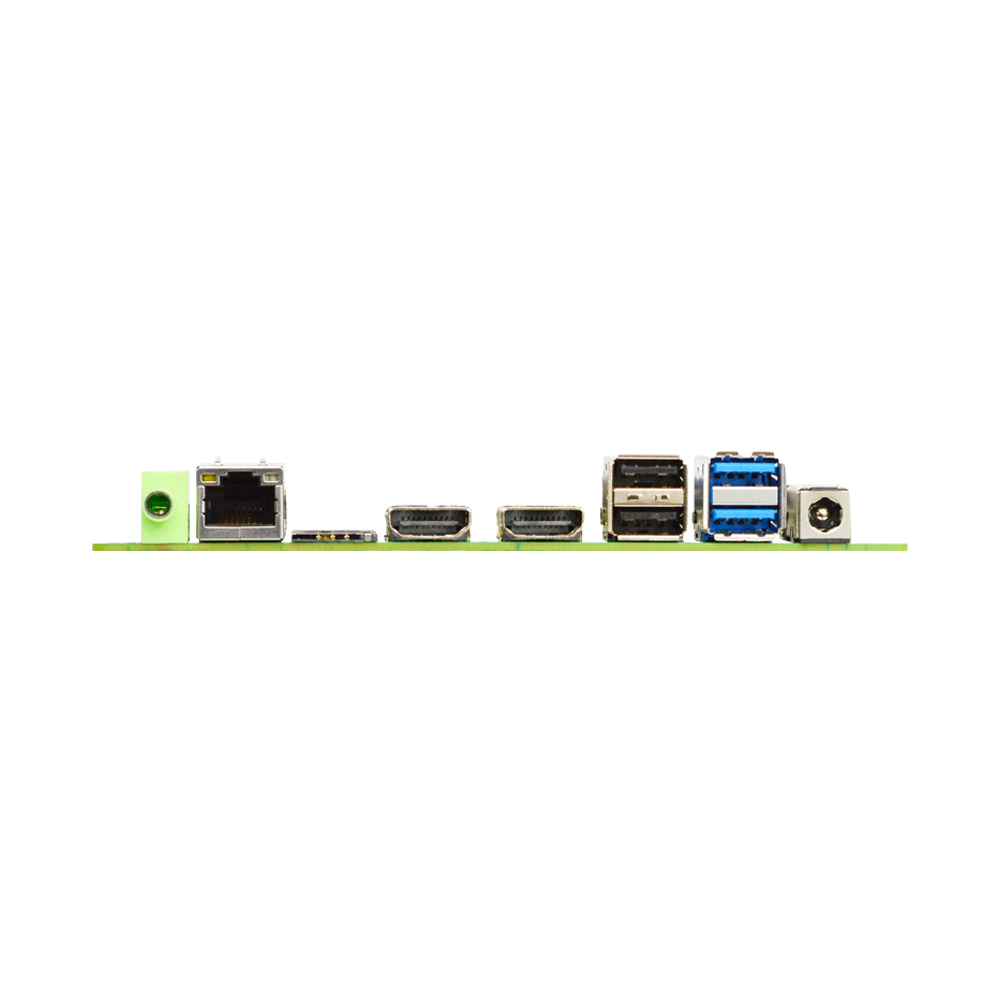

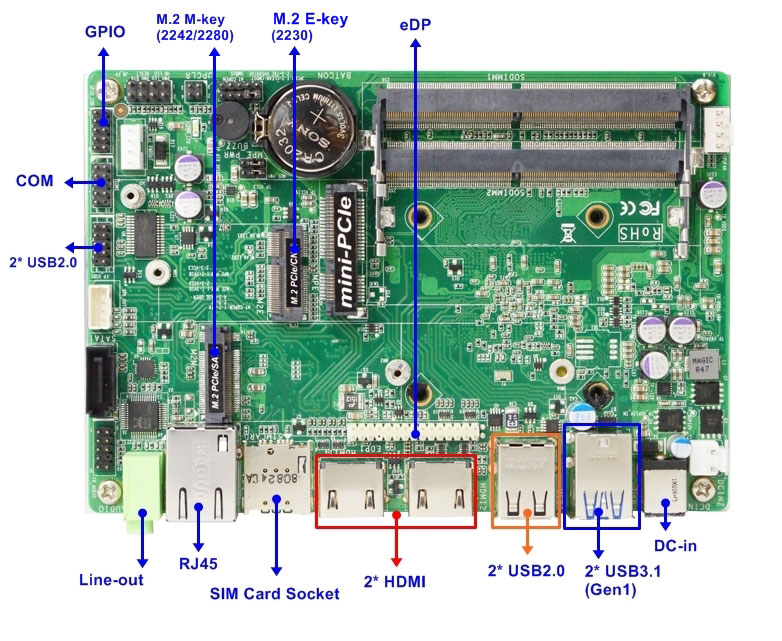

| Rear I/O | 2* USB3.1 (Gen1) |
| 2* USB2.0 |
| 2* HDMI |
| 1* Ethernet |
| 1* SIM card slot |
| Line-out |
| DC-in (12V) |
| Internal Connector | 2* USB2.0 |
| 1* eDP |
| 1* RS232 |
| 1* SATAIII |
| 1* GPIO (8 bit) |
| 1* Audio Header |
| 1* SMBUS |
| 1* CPU FAN |
| 1* AT mode |
| Watchdog Timer | From Super I/O to drag RESETCON# |
| 256 segments (10 ~ 255min) |
| Power | DC-IN 12V |
| AT: Directly PWR on as Power input ready |
| ATX: Press Button to PWR on after Power input ready |
| Compliance | CE, FCC, LVD, RoHS, REACH |
| Temperature | Operating: 0°C ~ 60°C |
| Storage: -20°C ~ 85°C |
| Humidity: 10% ~ 90% RH @40°C (non-condensing) |
| OS Support | Windows 10, Linux |
