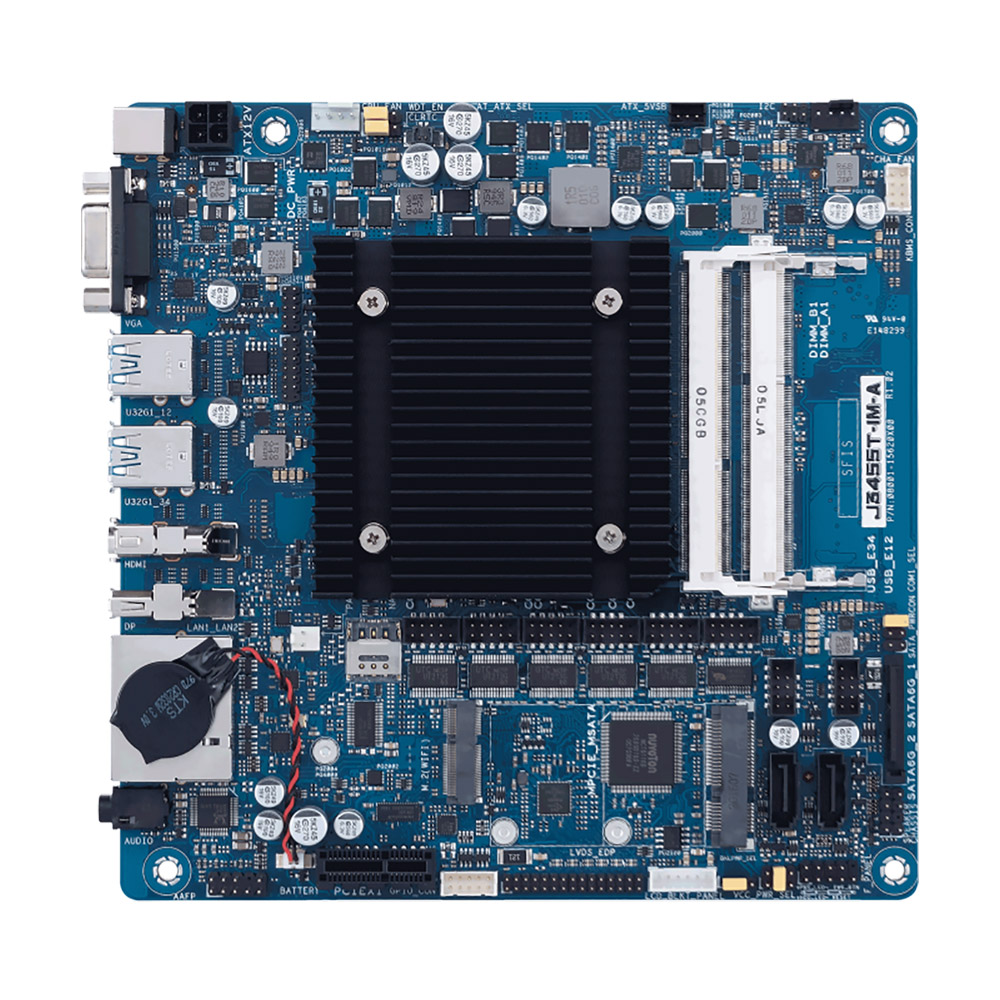

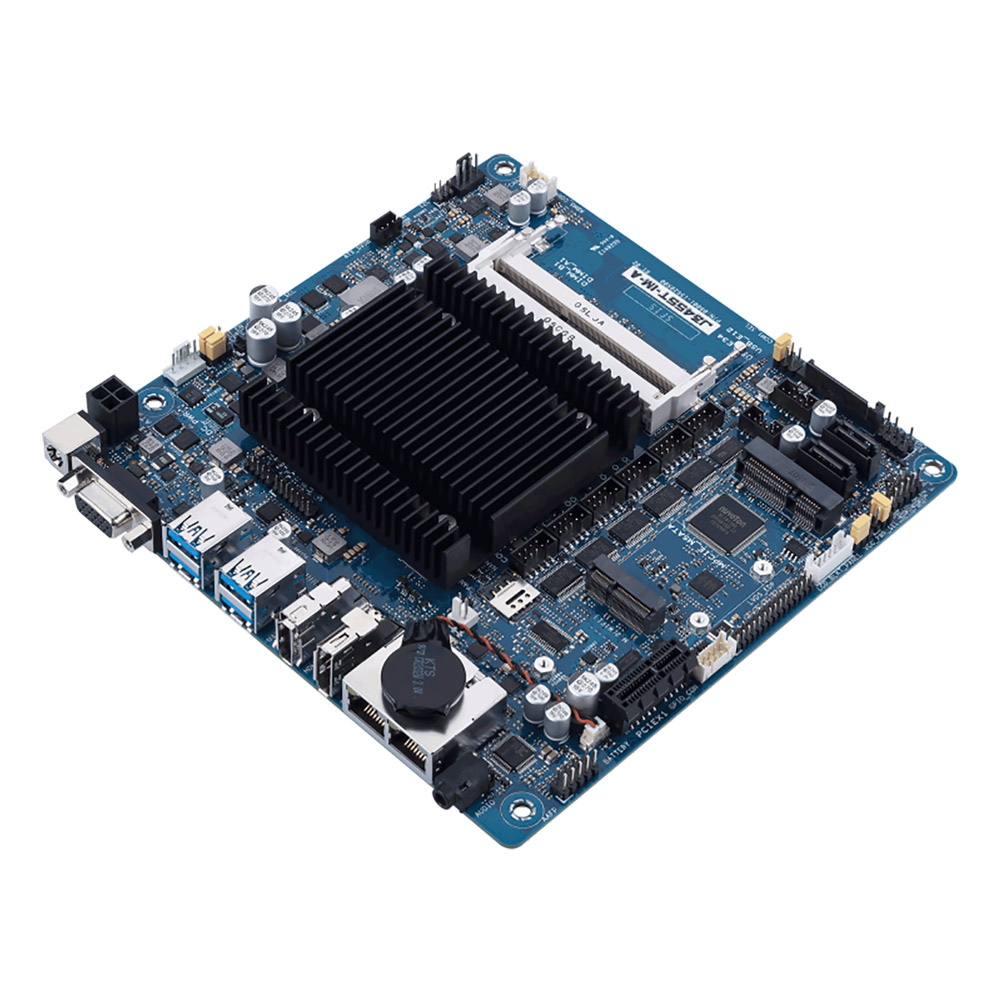

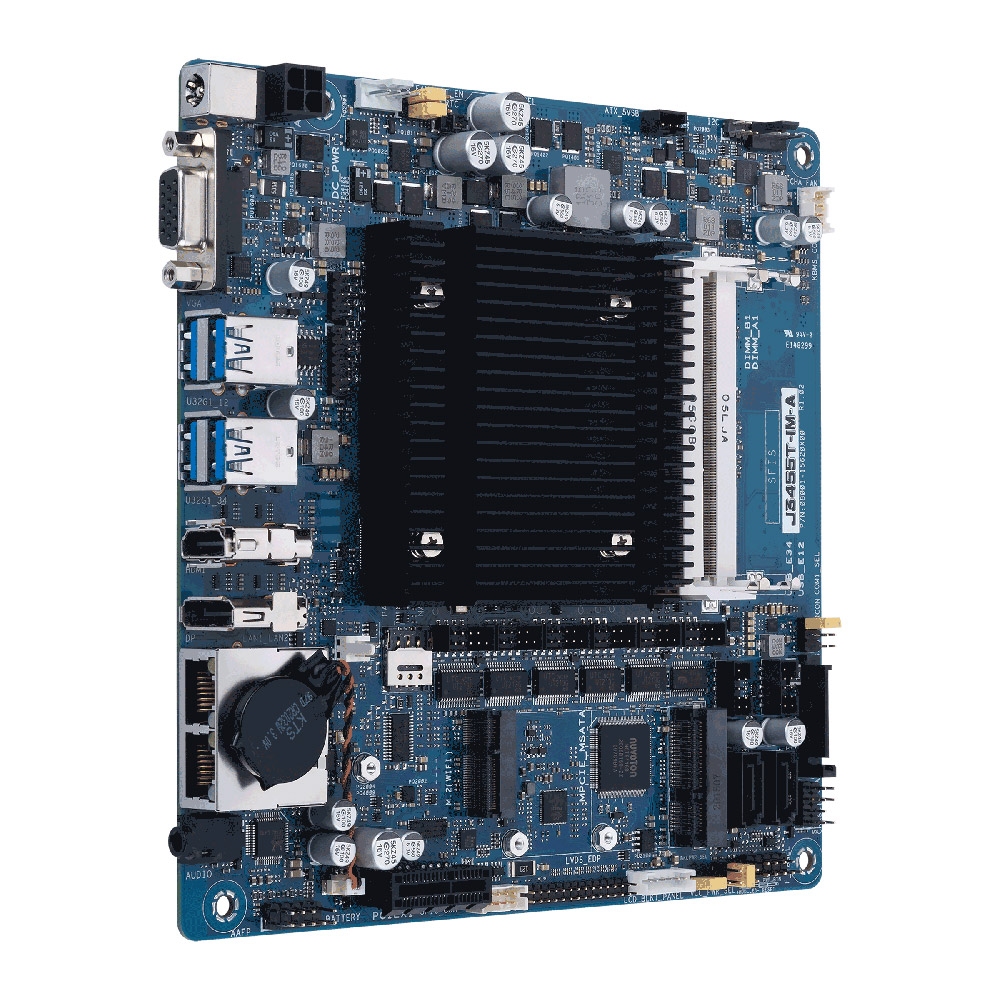

  • J3455T-IM-A-- ITX主板

  • J3455T-IM-A-- ITX主板

    • Two SO-DIMM up to 8GB DDR3L 1866 MHz.
    • Supports 3 display configuration by multiple interface: VGA/HDMI/DP/LVDS/eDP(optional)
    • 7-year longevity supply
    • Wide Temperature Range: 0~60°C

    • 0.00
      0.00
商品描述

• Two SO-DIMM up to 8GB DDR3L 1866 MHz.
• Supports 3 display configuration by multiple interface: VGA/HDMI/DP/LVDS/eDP(optional)
• 7-year longevity supply
• Wide Temperature Range: 0~60°C

产品单页详情下载请点击
提取码：1111

• Two SO-DIMM up to 8GB DDR3L 1866 MHz.
• Supports 3 display configuration by multiple interface: VGA/HDMI/DP/LVDS/eDP(optional)
• 7-year longevity supply
• Wide Temperature Range: 0~60°C


Processor SystemCPUBuild in Intel®J3455 SoC onboard Processors
MemoryTechnologyDDR3L 1866 MHz Non-ECC, Un-buffered Memory
Max.8GB
Socket2 x SO-DIMM
DisplayVGA1, Supports up to 1900 X 1200 @ 60 Hz(colay with DP++)
HDMI1, Supports up to 3840 X 2160 @ 30Hz
Display Port++1, Supports up to 4096 x2160 @ 60Hz(colay with VGA)
LVDS1, Supports up to 1920 x1200 @ 60Hz(colay with eDP)
Embedded Display Port1, Supports up to 4096 x2160 @ 60Hz(colay with LVDS, optional)
Triple DisplayVGA+HDMI+LVDS, VGA+HDMI+eDP, DP+HDMI+LVDS, DP+HDMI+eDP
Expansion SlotPCIe1 x PCIe 2.0 x1 (colay with M.2 E key)
Mini-PCIe1 x Full/Half-size PCIe mini card slot(w/ SIM holder)
M.21 x M.2 Socket 1 with E key, type 2230 for WIFI/BT device(colay with PCIe)
EthernetSpeed10/100/1000Mbps
Controller2 x Realtek® 8111H, supports WOL/PXE
Connector2 x RJ-45
AudioCodecRealtek® ALC887
ConnectorLine-Out, line-In
StorageSATA port2 x SATA Gen 3.0, up to 6Gb/s
mSATA1 x Full/Half-size mSATA slot(shared with Mini PCIe)

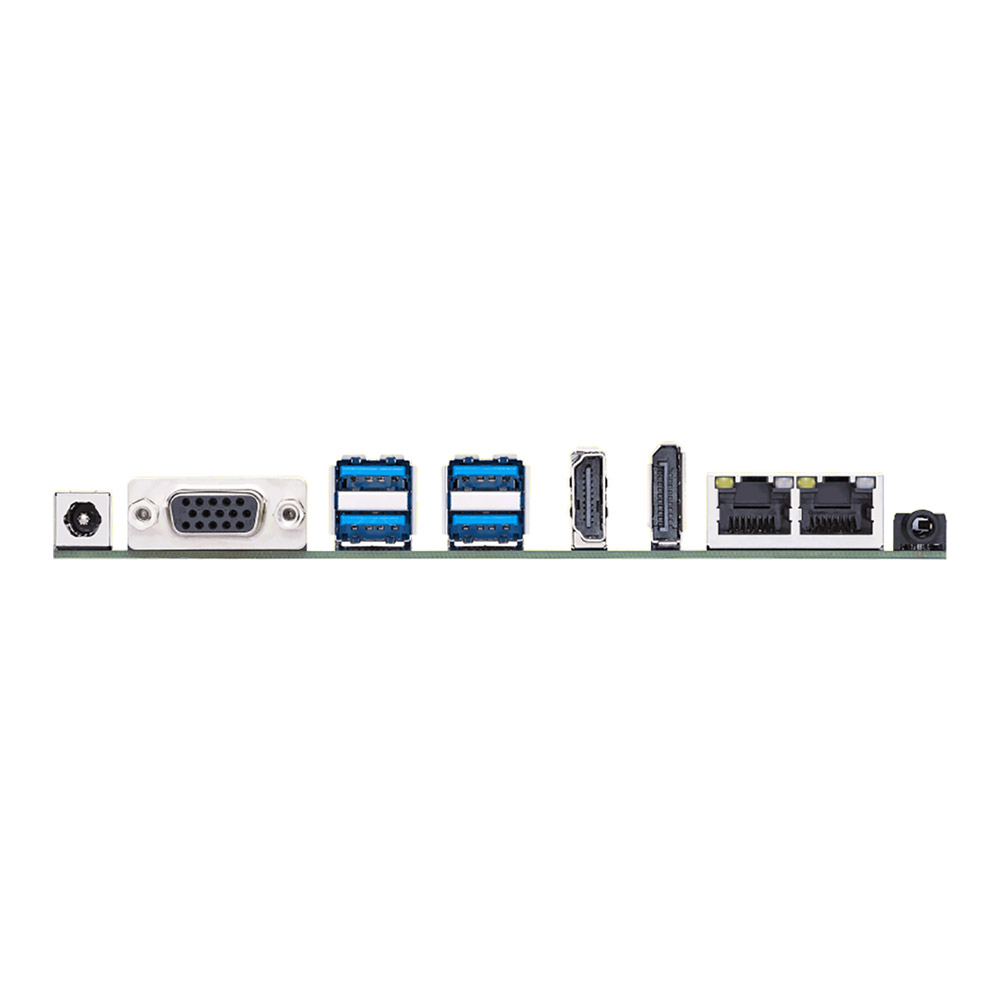

Rear I/OVGA1
HDMI1
Display Port++1
USB3.2 Gen14
Ethernet2
Audio jack1(Default Line-out, switch to line-in by BIOS)
DC IN1
Internal ConnectorSerial Header6 (5 x RS232, 1 x RS232/422/485)
USB 2.02 x Header support additional 4 x USB2.0 connectors
8-bit GPIO Header1
KB/MS Header1
CPU Fan Connector1 (PWM Mode)
Chassis Fan Header1 (PWM Mode)
SATA Power Connector1
SATA Gen 3.0 Connector2
Front Panel Audio Header (AAFP)1
System Panel Header1
Speaker Header1
AT/ATX select header1
ATX Power supply(5VSB) Connector1
Chassis intrusion header1
Clear CMOS Jumper1
I2C Header1
LVDS Connector1
eDP Connector1(optional)
LPC Debug header1
Display Panel Backlight Power Selector1
Flat Panel Display Brightness Connector1
Display Panel VCC Power Selector1
LCD panel monitor switch header1
Power Connector1 X 4-pin ATX Power Connector
Watchdog TimerH/WYES
SecurityTPM1 x SPI TPM header
PowerPower TypeAT/ATX mode and DC in
VoltageDC in 12V
Operating SystemMicrosoft WindowsWindows® 10 (64bit ) / Win10 IoT Enterprise
LinuxUbuntu, RedHat Enterprise, Fedora Workstation, OpenSUSE
EnvironmentOperating Temperature0~60° C
Non-Operating Temperature-40~85° C
Relative Humidity0%~85%
DimensionForm FactorThin Mini-ITX, 170 x 170 mm
CertificationSafetyCE, FCC
