1. Support Intel Core i7/i5/i3/ Pentium / Celeron desktop processor (LGA) with Intel H61 chipset
2. Supports dual display for VGA, DVI, LVDS
3. Support PCIe x4 (Gen 2) and mini PCIe
4. Support 8 USB, 6 COMs, 3 SATA II, 8 bit GPIO
5. Support embedded software APIs and Utilityies
6. Two 204-pin S
产品单页详情下载请点击
提取码：1111
1. Support Intel Core i7/i5/i3/ Pentium / Celeron desktop processor (LGA) with Intel H61 chipset
2. Supports dual display for VGA, DVI, LVDS
3. Support PCIe x4 (Gen 2) and mini PCIe
4. Support 8 USB, 6 COMs, 3 SATA II, 8 bit GPIO
5. Support embedded software APIs and Utilityies
6. Two 204-pin SO-DIMM up to 8GB DDR3 1066/1333/1600 MHz SDRAM
| 产品型号 | ECB-H61C62B |
| CPU型号 | 支持Intel Core i7-3770/Core i5-3550S/i3-3220/Pentium G2120/Celeron G1620 |
| 芯片 | Intel H61 |
| 内存 | Dual Channel DDR3 1066/1333/1600 MHz SDRAM，2x 204 PIN DDR3 SO-DIMM (Non-ECC)，8 GB/4 GB per SO-DIMM |
| 网络接口 | 2* RTL8111E,10/100/1000 Mbps |
| 扩展接口 | 1*MINI PCIE；1*MSATA;PCIe x4 (Gen2) |
| 显示接口 | Supports dual display for VGA, DVI, LVDS |
| 音频 | 2 *(Mic-In, Line-out) |
| COM接口 | 1*RS232, 1*RS232/422/485,4*RS-232 |
| 风扇 | N/A |
| 看门狗 | 1-255秒/分，看门狗超时中断或复位系统 |

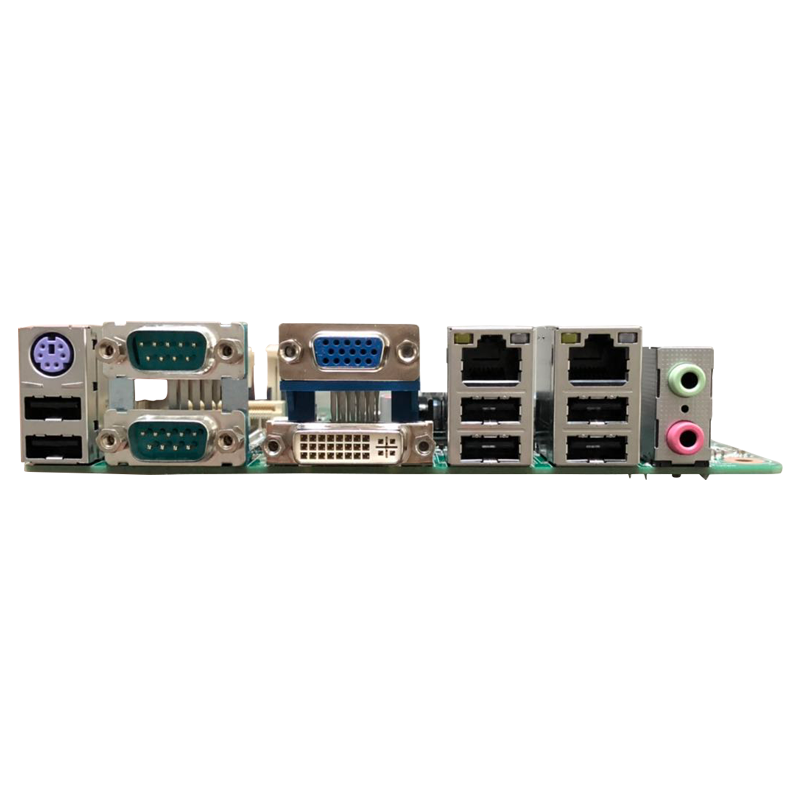

| I/O接口 | Rear I/O: |
| 1*VGA |
| 1*DVI |
| 2*Ethernet |
| 6*USB2.0 |
| 2*(Mic-In, Line-out)音频接口 |
| 1*RS232, 1*RS232/422/485 |
| 1*PS/2 |
| Internal Connector: |
| 3*SATA2.0 |
| 4*RS-232 |
| 8 bit GPIO |
| 电源类型 | AC220V 24PIN+4PIN ATX |
| 工作温度 | 0~60°C(32~140°F) |
| 存储温度 | -20~70°C(-4~158°F) |
| 相对湿度 | N/A |
| 尺寸 | 170 mm x 170 mm (6.69" x 6.69") |
