| Processor System | CPU | Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™i3/Pentium®/Celeron® Processors supports 22nm CPU |
| CHIPSET | Intel® H81 chipset |
| Memory | Technology | DDR3L 1600/1333/1066 MHz |
| Max. | 16GB |
| Display | Socket | 2 x SO-DIMM |
| D-Sub | 2, Supports up to 1920 X 1200 @ 60 Hz |
| Multi Display | D-Sub+D-Sub |
| Expansion Slot | PCle | 1 x PCIe 2.0 x1slot |
| Mini PCle | 1 xfull mini-PCIe |
| mSATA | 1 x full/half mSATA |
| M.2 | 1 x M.2 Socket 1 with E key, type 2230 for WIFI/BT device1 x SIM Card Slot |
| Ethernet | Speed | 10/100/1000Mbps |
| Controller | 2 x Realtek® 8111H |
| Connector | 2 x RJ-45 |
| Audio | Codec | RealtekALC887-VD2 High Definition Audio |
| Connector | Line-Out, Line-In, Mic-In |
| Storage | SATA port | 2 x SATA Gen 3.0, up to 6Gb/s |
| mSATA | 1 x mSATA 3Gb/s |

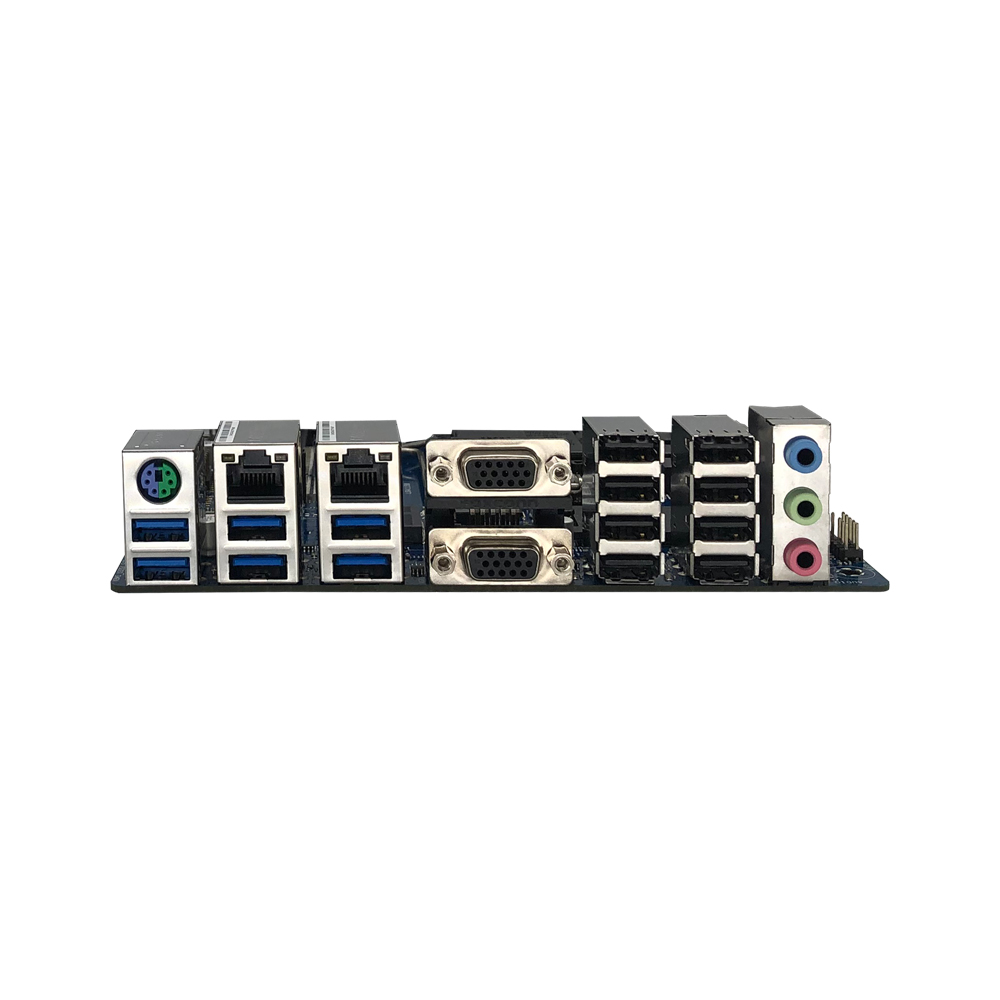

| Rear I/O | D-Sub | 2 |
| USB3 2 Gen 1 | 6 |
| USB 2.0 | 8 |
| Ethernet | 2 |
| Audio jack | 3 |
| PS/2 COMBO | 1 |
| Internal Connector | Serial Port | 12 (RS232) |
| CPU Fan Connector | 1 (PWMMode) |
| Chassis Fan header | 1 (PWMMode) |
| Chassis Intrusion Header | 1 |
| Front Panel Audio Header(AAFP) | 1 |
| System Panel Header | 1(10-1Pin) |
| Clear CMOS Jumper | 1 |
| Speaker Header | 1(4-pin) |
| LPC Debug Header | 1 |
| Speaker out Header | 1 (With speaker AMP IC, 3W) |
| AT/ATX select header | 1 |
| Power Connector | 1 X 4-pin ATX 12V Power Connector, 1 X 24-pin EATX Power Connector |
| Power | Power Type | both ATX/AT Mode |
| Operating System | Microsoft windows | Windows® 7 |
| Linux | Ubuntu 16.04 |
| Environment | Operating Temperature | 0~50° C |
| Non-Operating Temperature | -40~85° C |
| Relative Humidity | 5%~95% |
| Dimension | Form Factor | Mini-ITX, 170 x 170 mm |
| Certification | Safety | CE, FCC |
