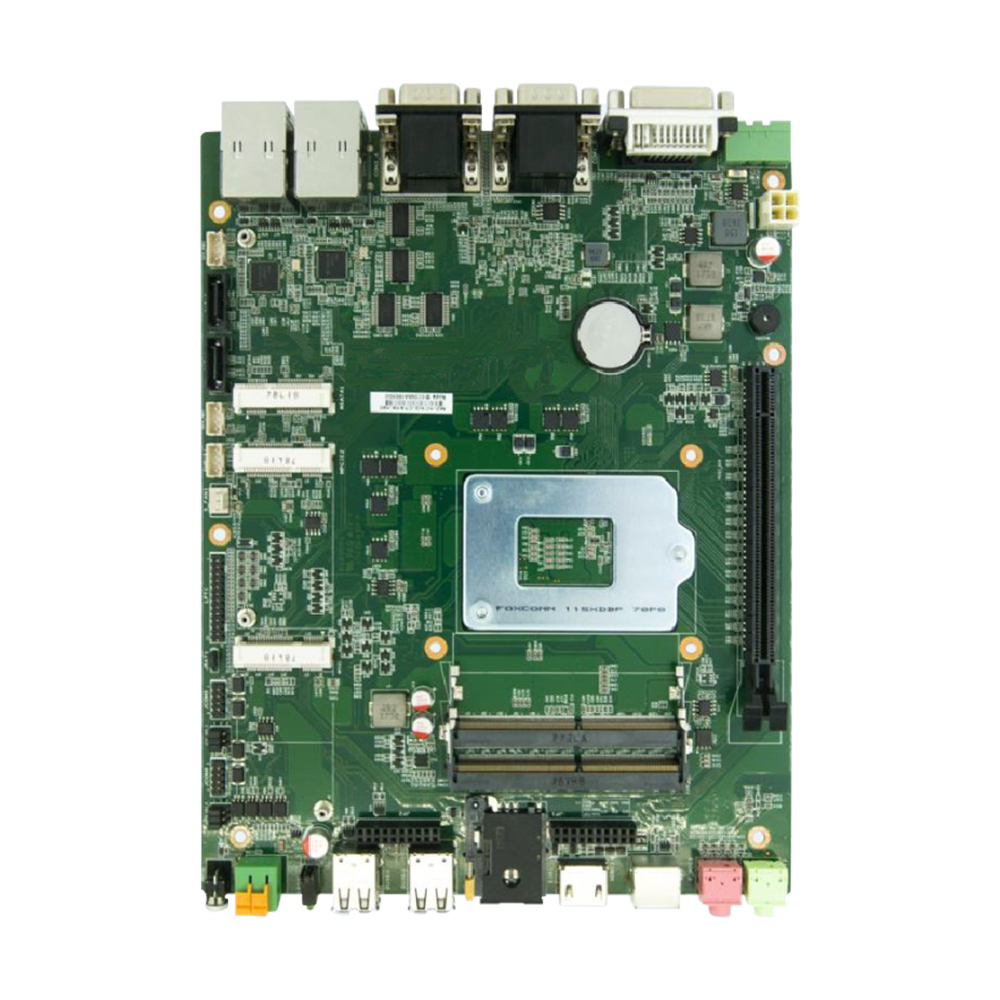

  • ECB-H11C62D-嵌入式主板

  • ECB-H11C62D-嵌入式主板

    1. Support Intel Skylake-S CPU, LGA1151
    2. 2*SO-DIMM DDR4 Memory, MAX 32GB
    3. Support HDMI +DVI-D+VGA display
    4.1* PCIE * 16SLot
    5. 4*COM, Support RS232
    6. 2*COM, RS232/RS458 Option
    7. 8*USB Max
    8. Support 12V- 24V DC IN/ATX_ 4PIN
    9. Support LPT
    10. Support 3G/4G Module

    • 0.00
      0.00
商品描述

1. Support Intel Skylake-S CPU, LGA1151
2. 2*SO-DIMM DDR4 Memory, MAX 32GB
3. Support HDMI +DVI-D+VGA display
4.1* PCIE * 16SLot
5. 4*COM, Support RS232
6. 2*COM, RS232/RS458 Option
7. 8*USB Max
8. Support 12V- 24V DC IN/ATX_ 4PIN
9. Support LPT
10. Support 3G/4G Module

产品单页详情下载请点击

提取码：1111

1. Support Intel Skylake-S CPU, LGA1151
2. 2*SO-DIMM DDR4 Memory, MAX 32GB
3. Support HDMI +DVI-D+VGA display
4.1* PCIE * 16SLot
5. 4*COM, Support RS232
6. 2*COM, RS232/RS458 Option
7. 8*USB Max
8. Support 12V- 24V DC IN/ATX_ 4PIN
9. Support LPT
10. Support 3G/4G Module

Processor Intel 6 th Pentium/ Celeron/ Core i3/i5/i7  CPU, LGA1151
Chipset Intel H110 PCH
Memory 2*SO-DIMM DDR4， Max 32GB
Storage 2*SATAIll ports
1*MSATA
Graphics Intel® HD Graphics
Network 2* Intel i210 Gigabit Ethernet
AudioRealtek ALC662 HD Audio Ic

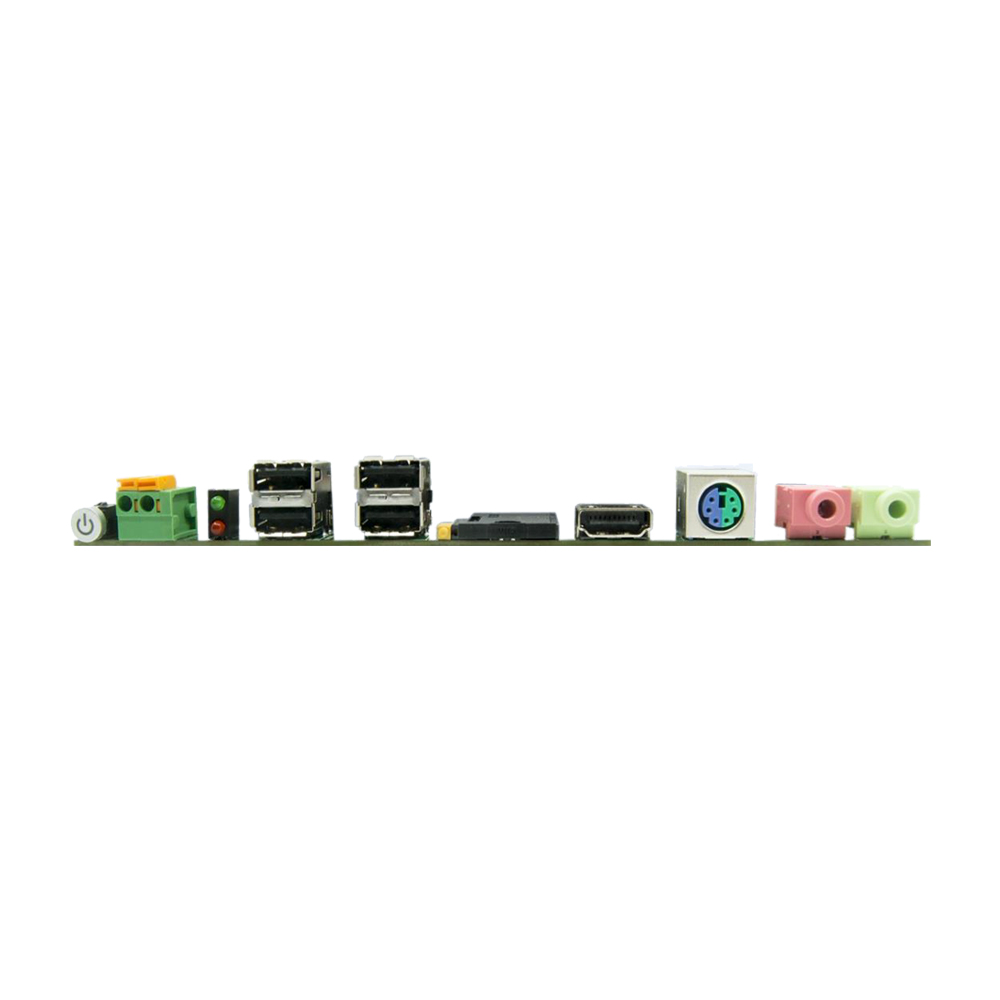

Front I/O interfacePower Switch 2
LED 2， PWR_LED& HDD_LED
USB2.04
Standard SIM 1
HDMI 1
PS/21（KB/MS Support）
Mic in 1
Line out 1

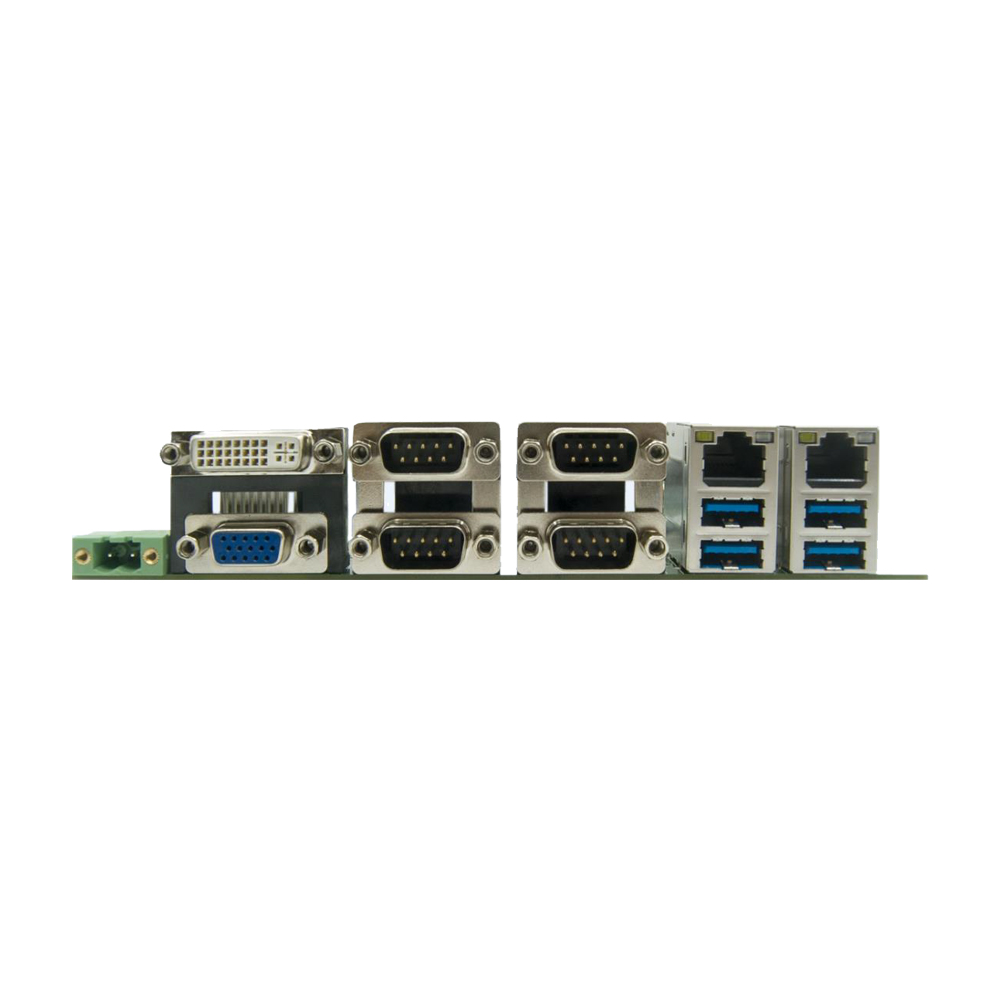

Rear I/O interfaceDC IN JACK 1，2PIN
VGA 1
DVI-D 1
COM4，DB-9 RS232
RJ452
USB3.04
Internal Interfaces MIMI PCIE 2， Support WiFi/BT/3G
PCIE *161
SATA III 2
SATA PWR 2. 4PIN
COM 2， 2 x 9 pin（R232/R485 Option）
ATX PWR1，2* 2PIN
12C 1， 3PIN
CPU_FAN 1， 3PIN
LPT 1 2x 13PIN
SM BUS 1， 3PIN
Express COM2， 2*10PIN
Power input 12V 24V DC IN，2*2PIN ATX
Watchdog Support
Dimension 234×185mm
Working enviroment Working temperture：-20℃~60℃
Storage temperture：-20℃~70℃
Relative humidity10%~90%（non-condensing）
