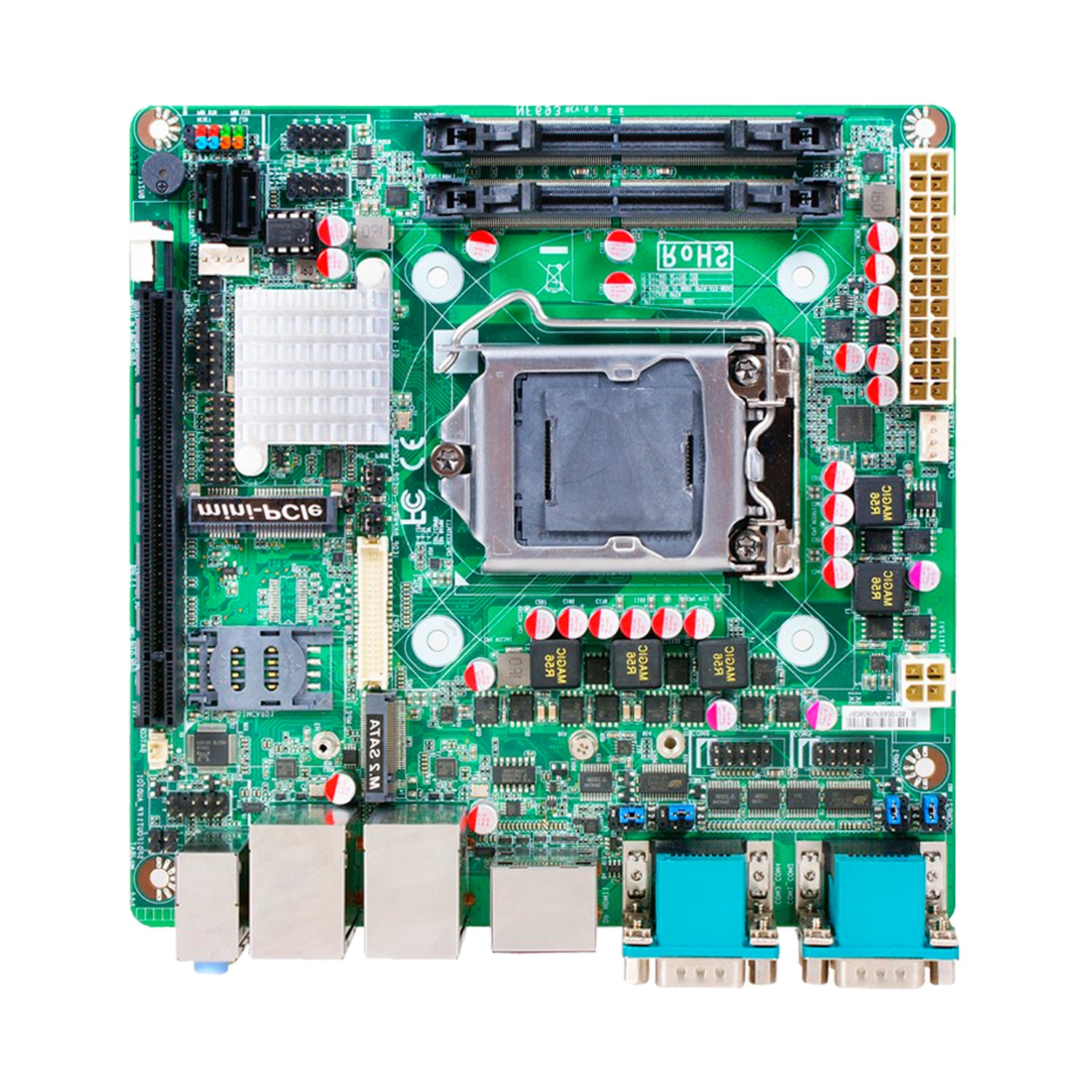

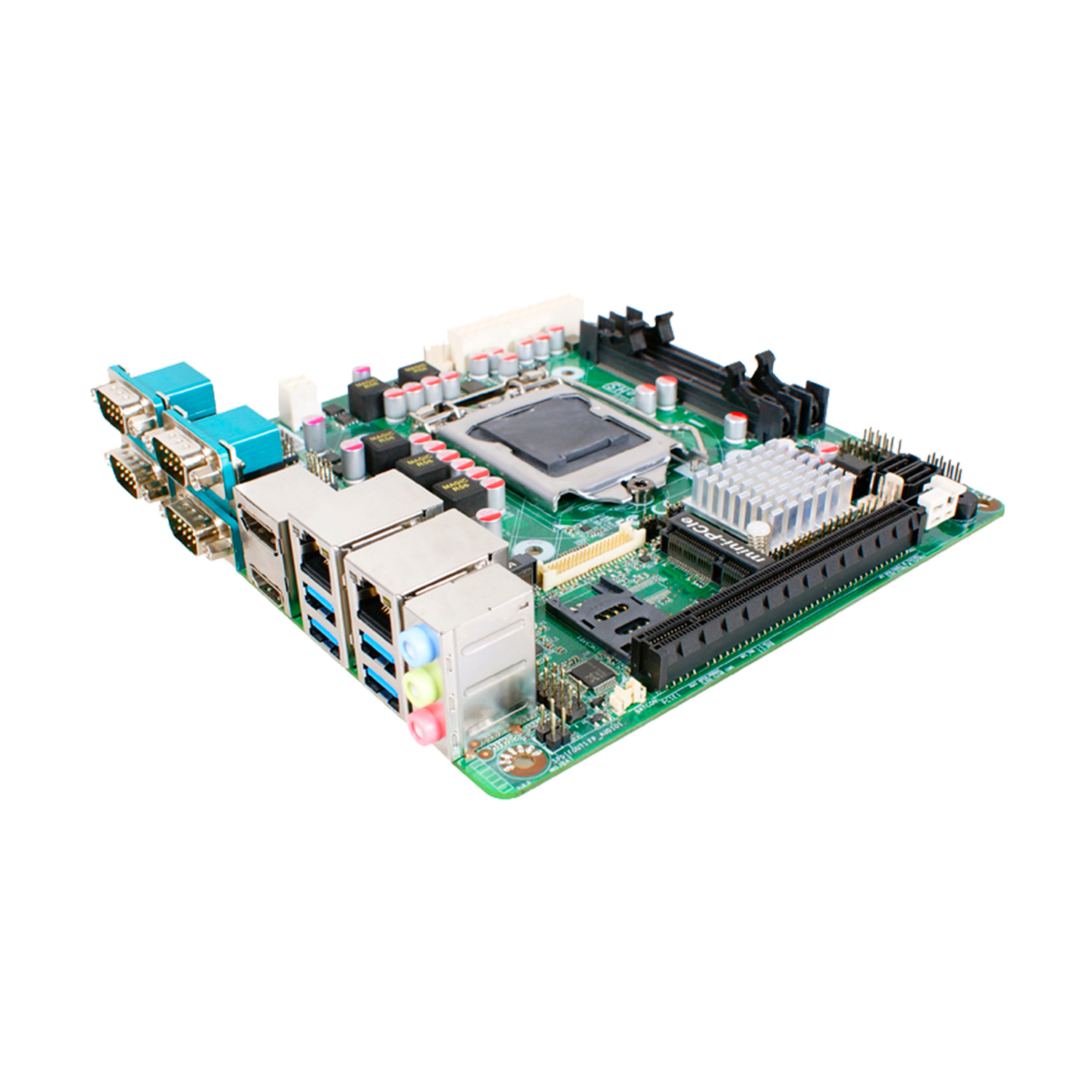

  • ECB-H110C67---ITX主板

  • ECB-H110C67---ITX主板

    Intel LGA1151 Socket Core i3, i5, i7 & Pentium Processors (Max. 65W)
    Intel H110 Express Chipset
    Support Dual Channel DDR4 2133MHz, 2 *SO-DIMM slot, up to 32GB memory
    Realtek ALC662VD 6-Channel HD Audio
    2 * Realtek RTL8111G GbE
    Support 2 * SATAIII (6Gb/s), 1 * mPCIe/mSATA and 1* M.2 (M-key, 2242/2260)
    Support HDMI/DP/eDP, dual displays
    4 * External RS232 and 2 * internal COM (COM1supports RS232/422/485)
    4 * External USB3.0 & 4 * Internal USB1.1/2.0
    1 * PCIe x16 slot
    1 * SIM Card Holder

    • 0.00
      0.00
商品描述

Intel LGA1151 Socket Core i3, i5, i7 & Pentium Processors (Max. 65W)
Intel H110 Express Chipset
Support Dual Channel DDR4 2133MHz, 2 *SO-DIMM slot, up to 32GB memory
Realtek ALC662VD 6-Channel HD Audio
2 * Realtek RTL8111G GbE
Support 2 * SATAIII (6Gb/s), 1 * mPCIe/mSATA and 1* M.2 (M-key, 2242/2260)
Support HDMI/DP/eDP, dual displays
4 * External RS232 and 2 * internal COM (COM1supports RS232/422/485)
4 * External USB3.0 & 4 * Internal USB1.1/2.0
1 * PCIe x16 slot
1 * SIM Card Holder

产品单页详情下载请点击

提取码：1111

Intel  LGA1151 Socket Core i3, i5, i7 & Pentium Processors (Max. 65W)
Intel H110 Express Chipset
Support Dual Channel DDR4 2133MHz, 2 *SO-DIMM slot, up to 32GB memory
Realtek ALC662VD 6-Channel HD Audio
2 * Realtek RTL8111G GbE
Support 2 * SATAIII (6Gb/s), 1 * mPCIe/mSATA and 1* M.2 (M-key, 2242/2260)
Support HDMI/DP/eDP, dual displays
4 * External RS232 and 2 * internal COM (COM1supports RS232/422/485)
4 * External USB3.0 & 4 * Internal USB1.1/2.0
1 * PCIe x16 slot
1 * SIM Card Holder

DimensionsMini-ITX (6.7-in * 6.7-in, 170 * 170mm)
CPUIntel LGA 1151 Socket Core i7 / i5 / i3 / Pentium / Celeron Processor (TDP 65W)
Core Number(By CPU)
Max Speed(By CPU)
L2 Cache(By CPU)
ChipsetIntel H110 Express chipset
BIOSAMI 64Mb Flash ROM
Mini-PCIe1 (full size, co-lay with mSATA)
mSATA1 (full size, co-lay with Mini-PCIe)
M.21 (M-key, 2242/2260)
PCIe1 * PCIe x16
SIM card holder1
MemoryDual Channel DDR4 2133MHz SDRAM，Max.32GB，2 * SO-DIMM Socket
ControllerIntel  Gen9 Graphics supports DX 11/12, OGL4.3 / 4.4
VRAMShared Memory
HDMI1 (Max. Resolution : 4096×2304@24Hz)
DP1 (Max. Resolution : 4096*2304@60Hz)
eDP1 (Max. Resolution : 4096*2304@60Hz)
MultiDisplayDual Display
EthernetEthernet:10/100/1000 Mbps；Controller:Realtek RTL8111G GbE；Connector:2 * Rj45
AudioCODEC:HD Audio : Realtek ALC662VD；Channel：6 Channel
Max Data Transfer Rate2 * SATAIII (6.0Gb/s)
RAIDNo

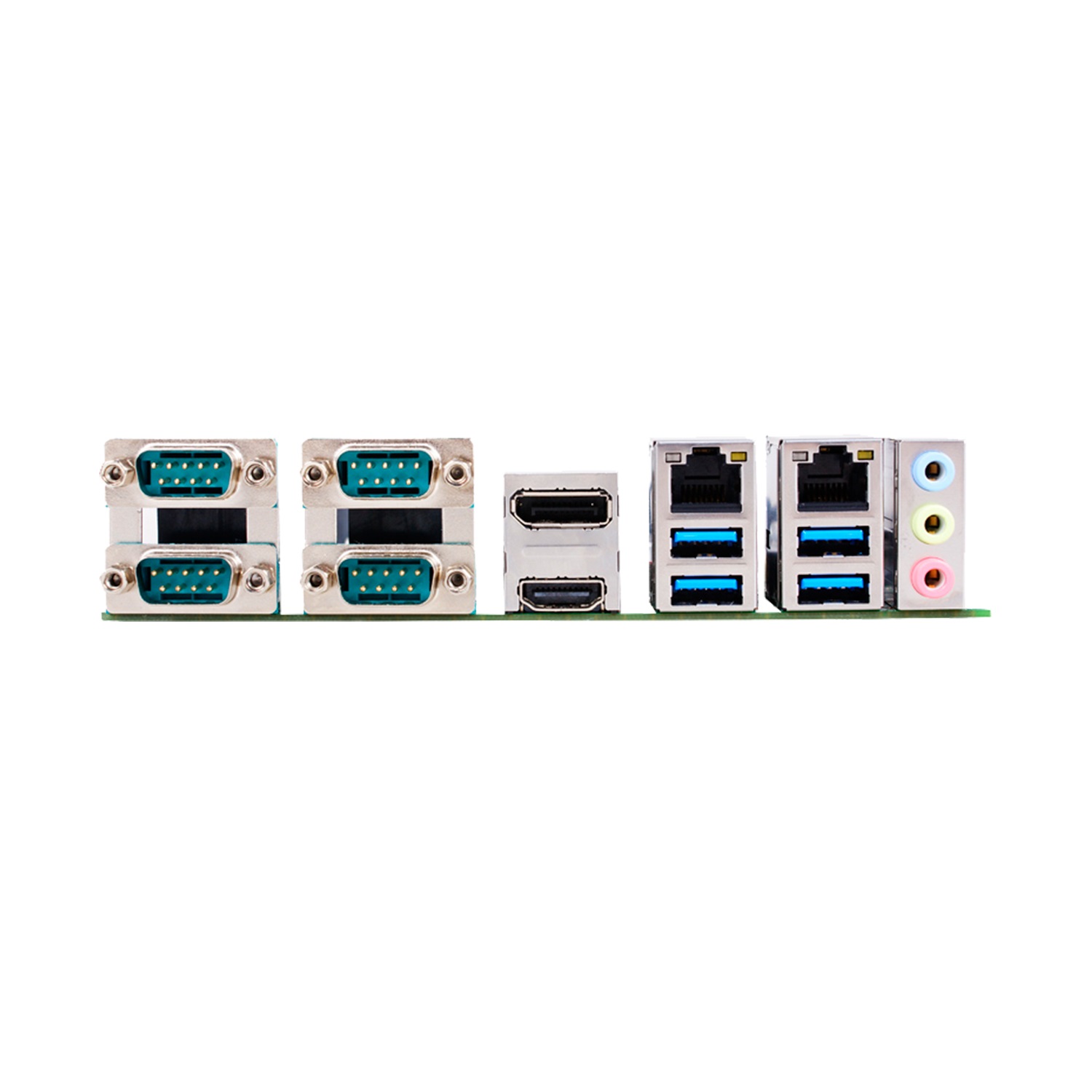

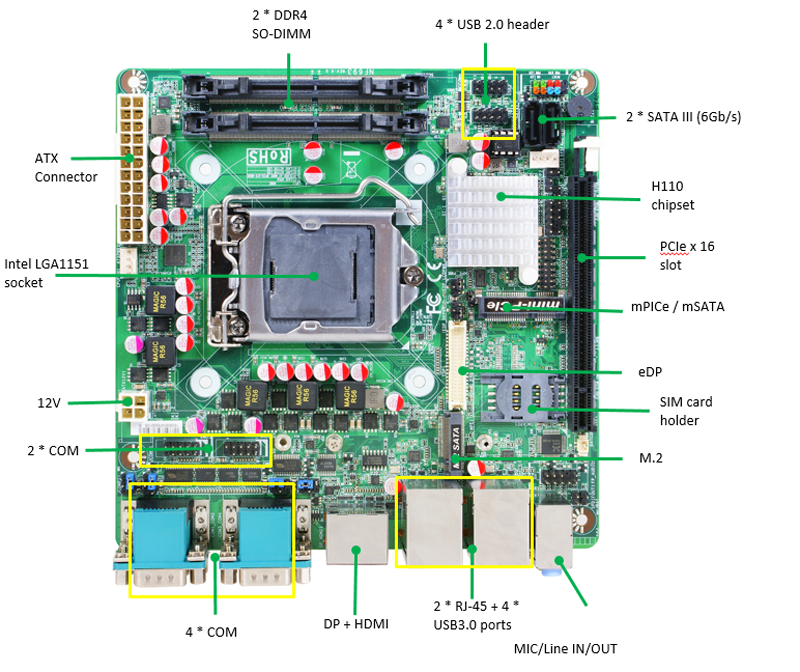

Rear I/O1*DP，1*HDMI，2*Ethernet，4 * USB 3.0，1*Line-in, 1*Line-out,1* MIC，
4*Serial(COM1 support RS232/422/485 )
Internal Connector4 * USB 2.0
1
2 (COM5 support RS232/422/485)
2
1 (full size, co-lay with mSATA)
1 (full size, co-lay with mPCIe)
1 (M-key, 2242/2260)
1
1
1
1 (8 bit programmable inputs/outputs)
1
1
1
1
OutputFrom Super I/O to drag RESETCON#
Interval256 segments (10sec ~ 255min)
Input PWR24 pin/4 pin ATX PWR Connector
Power OnAT/ATX Supported
AT: Directly PWR on as Power input ready
ATX: Press Button to PWR on after Power input ready
CertificationsCE, FCC, RoHS, REACH
TemperatureOperating: 0°C ~ 60°C；Storage: -20°C ~ 85°C
