  • ECB-H11C62B--ITX主板

  • ECB-H11C62B--ITX主板

    英特尔 LGA1151 Socket Core i3, i5, i7 & Pentium 处理器 (最大 65W))
    英特尔 H110 Express 芯片
    支持双通道DDR4 2133MHz, 2* UDIMM 槽最高支持 32GB
    2* 英特尔千兆网口 (I219-V + I211-AT)
    3* SATA III (6Gb/s), 1* M.2 (M-key 2242/2260/ 2280/22110)
    4* USB 3.0, 5* USB 2.0，10* COM (COM1 支持RS232/422/485)
    支持TPM (可选)

    • 0.00
      0.00
商品描述

英特尔 LGA1151 Socket Core i3, i5, i7 & Pentium 处理器 (最大 65W))
英特尔 H110 Express 芯片
支持双通道DDR4 2133MHz, 2* UDIMM 槽最高支持 32GB
2* 英特尔千兆网口 (I219-V + I211-AT)
3* SATA III (6Gb/s), 1* M.2 (M-key 2242/2260/ 2280/22110)
4* USB 3.0, 5* USB 2.0，10* COM (COM1 支持RS232/422/485)
支持TPM (可选)

产品单页详情下载请点击
提取码：1111

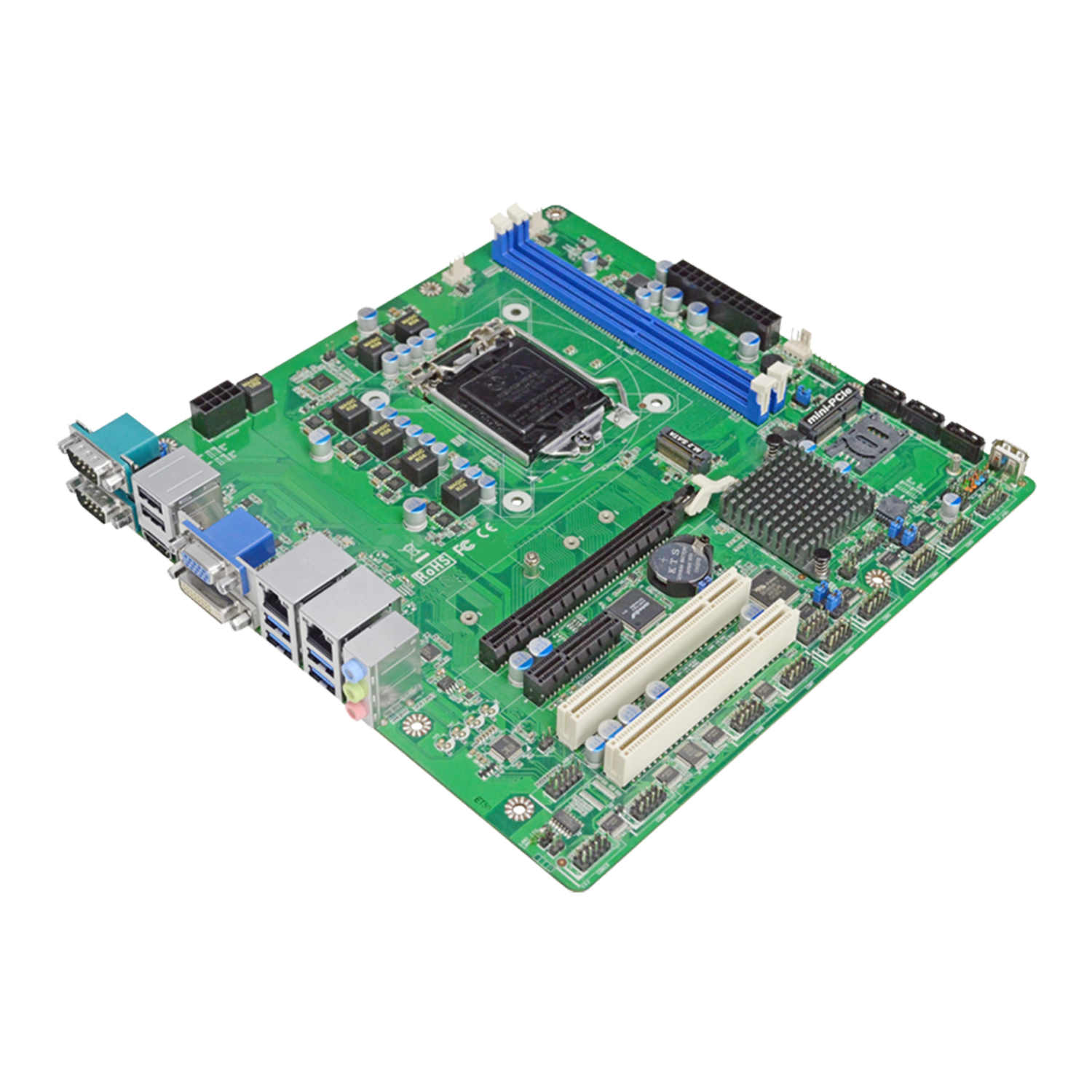

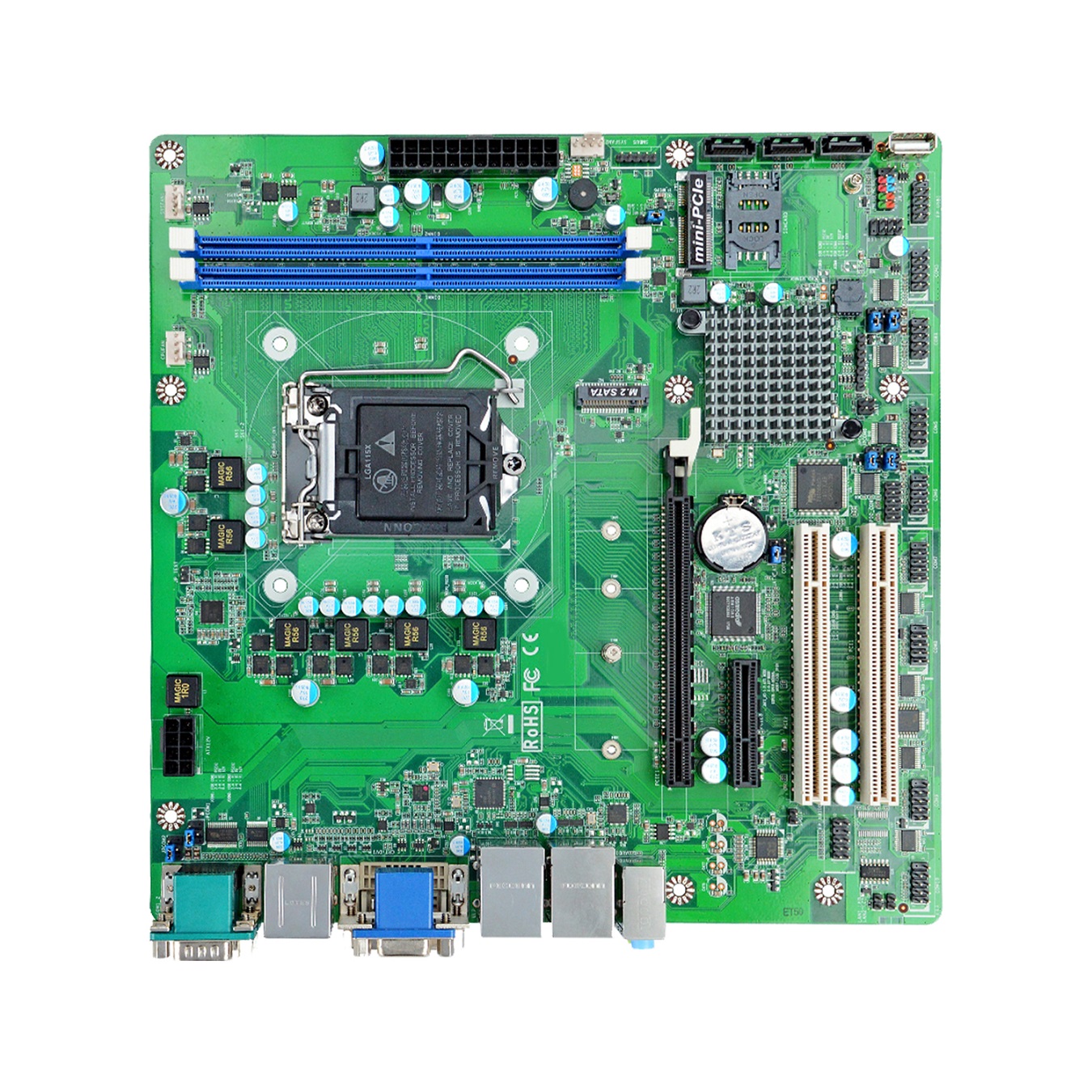

The ECB-H11C62B is Micro-ATX form factor board adopts the Intel  6th and 7th generation Core i7/i5/i3, Pentium and Celeron Processor. The board supports two UDIMM DDR4 2133Mhz memory, up to 32GB. Featuring the integrated Intel Gigabit Ethernet controller, the ECB-H11C62B offers two 10/100/1000Base-TX Ethernet devices for network transmission. Three SATAIII (6Gb/s) interface and one M.2 M-key offer storage devices. One Mini PCIe interface, four USB3.1 Gen.1 ports, five USB2.0/1.0 ports and ten COM ports provide versatile expansion. The PCIex16 slot can support Jetway riser card for different expansion. The ECB-H11C62B offers one HDMI 1.4 port, one DVI-D port and one VGA port which can support dual independent displays. Because of the above features, ECB-H11C62B is suitable for ATM, Industrial PCs, Factory Automation applications.

英特尔 LGA1151 Socket Core i3, i5, i7 & Pentium 处理器 (最大 65W))
英特尔 H110 Express 芯片
支持双通道DDR4 2133MHz, 2* UDIMM 槽最高支持 32GB
2* 英特尔千兆网口 (I219-V + I211-AT)
3* SATA III (6Gb/s), 1* M.2 (M-key 2242/2260/ 2280/22110)
4* USB 3.0, 5* USB 2.0，10* COM (COM1 支持RS232/422/485)
支持TPM (可选)

DimensionsMicro ATX (244 * 244mm)
CPUIntel  LGA1151 SkyLake/KabyLake Processor (Max. 65W TDP)
Core Number(By CPU)
Max Speed(By CPU)
Cache(By CPU)
ChipsetH110
BIOSAMI Flash ROM
Expansion1* Mini PCIe (full size)，1* PCIex16 slot，1* PCIex4 slot，2* PCI– 1* SIM card slot
MemoryDual CH DDR4 2133MHz UDIMM，Max.32GB，2* UDIMM Socket
ControllerIntel  HD Graphics
VRAMShared Memory
HDMI1 (Max Resolution: 1920×1200@60Hz)
DP1 (Max Resolution: 1920×1200@60Hz)
eDP1 (Max Resolution: 4096×2160@30Hz)
MultiDisplayDual Displays
EthernetEthernet:10/100/1000 Mbps；Controller: PCIe GbE: 1* i219V, 1* i211AT；
Connector:2 * Rj45
AudioCODEC:HD Audio: Realtek ALC662；Channel：6 Channel
SATA3* SATAIII

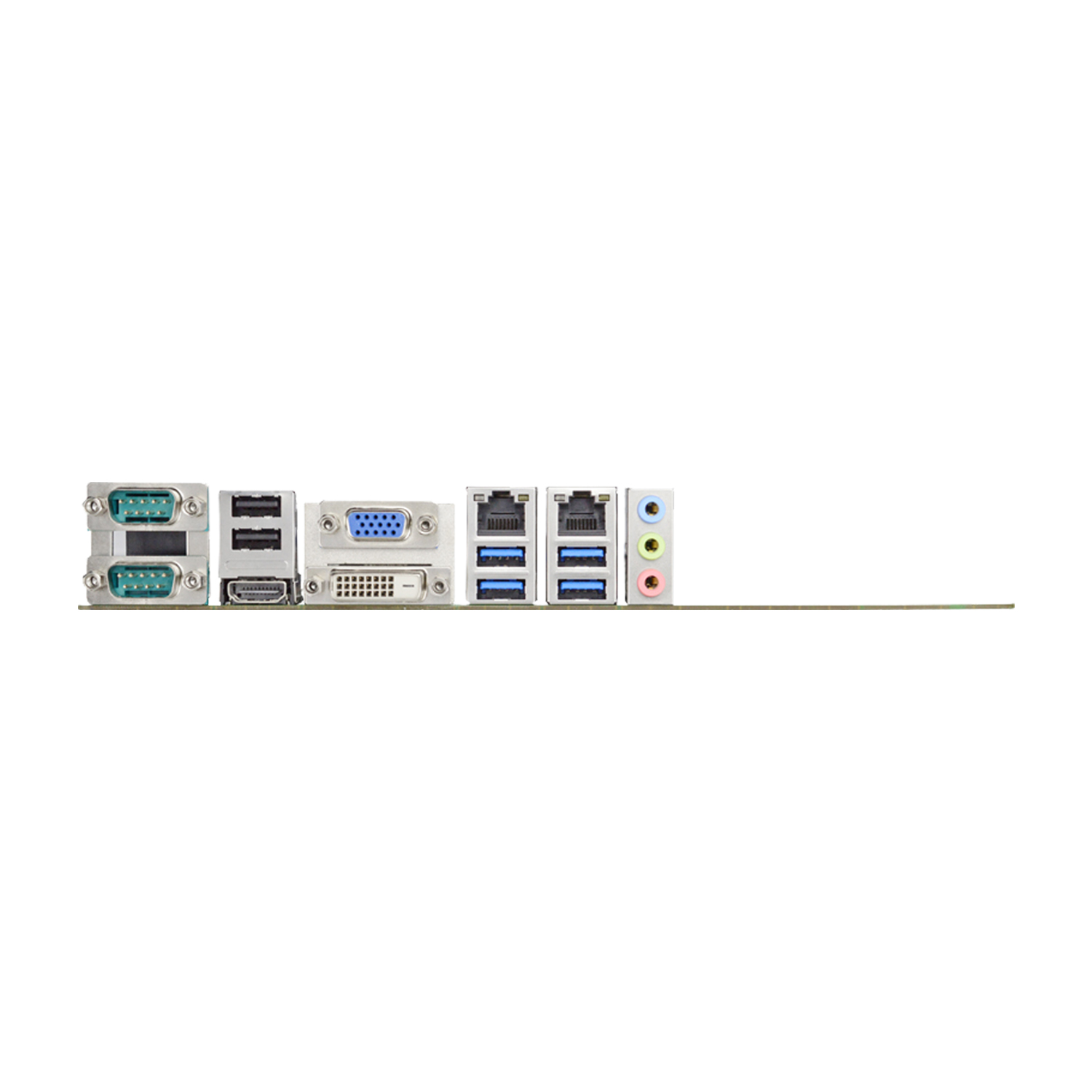

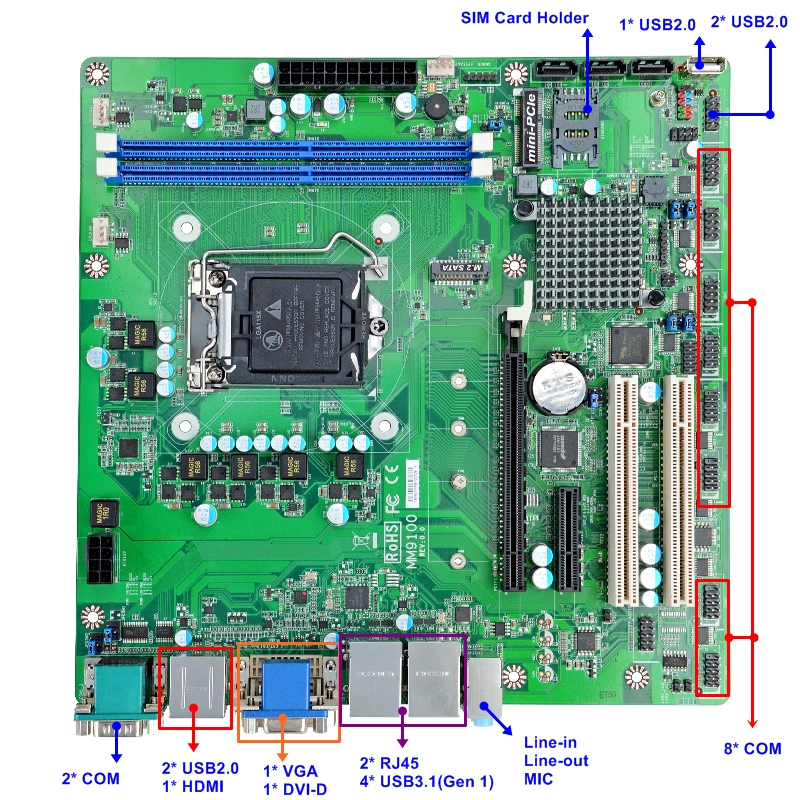

Rear I/O1* VGA， 1* HDMI，1* DVI-D，2* Ethernet Rj45，4* USB 3.1 (Gen. 1) & 2* USB2.0
 Line-In, Line-Out, MIC， 2* COM (COM 1 support RS232/422/485)
Internal Connector2* USB 2.0, 1* USB2.0 (Vertical type)
1* PS/2– 8* COM
3* SATAIII
1* SIM card slot
1* Mini PCIe (full size)
1* M.2 M-key 2242/2260/2280/22110 (SATA I/F)
1* GPIO (8 bit)
1* Chassis intrusion
1* Audio Header
1* SMBUS
1* AT mode
Support onboard TPM (option)
OutputFrom Super I/O to drag RESETCON#
Interval256 segments (10sec ~ 255min)
Input PWRATX PWR (8+24 pin)
Power OnAT/ATX Supported
AT: Directly PWR on as Power input ready
ATX: Press Button to PWR on after Power input ready
CertificationsCE, FCC, LVD, RoHS, REACH
TemperatureOperating: 0°C ~ 60°C
Storage:?-20°C?~?85°C
