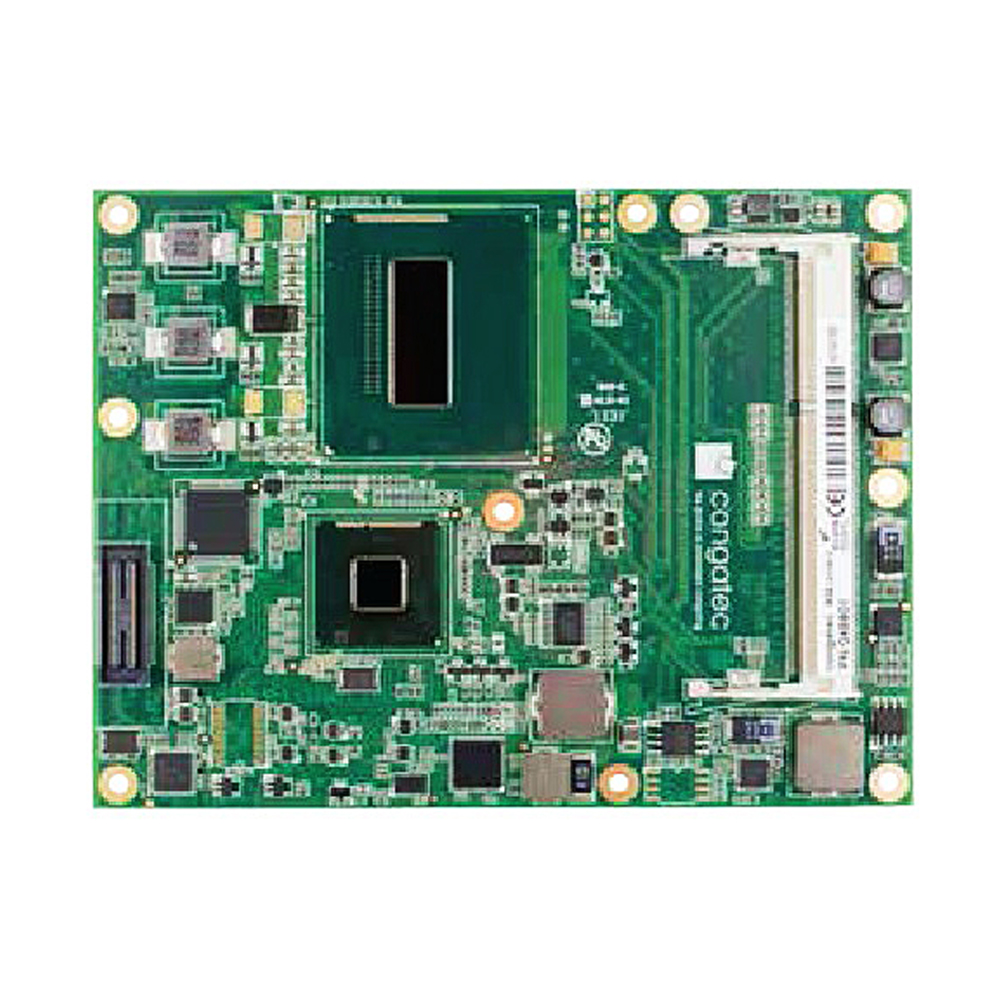

| 产品型号 | COME-QM876 |
| CPU型号 | Intel® 第四代® i3/i5/i7 |
| 芯片 | Mobile Intel® 8 Series Chipset: Intel® QM87 for Intel® Core™ processors / HM86 @ planned Celeron variants |
| 内存 | 2 Sockets, SO-DIMM DDR3L@1.35V up to 1600MT/s and 16GByte |
| 网络接口 | Intel® I218-LM GbE LAN Controller with AMT 9.0 support |
| 扩展接口 | N/A |
| 显示接口 | LVDS+VGA插针+HDMI插针+DVI插针+DP插针 |
| 音频 | Digital High Defiitin Audio Interface with support for multile audio codecs |
| COM接口 | 1*COM |
| 风扇 | 无风扇 |
| 看门狗 | 1-255秒/分，看门狗超时中断或复位系统 |
| I/O接口 | 7x PCI Express™ GEN. 2.0 lanes, 1x PEG GEN 3.0 (8GT/s) |
| 4x Serial ATA® 6 Gb/s, RAID 0/1/5/10 support, |
| 2x ExpressCard®, 4x USB 3.0 (XHCI), 8x USB 2.0 (EHCI), LPC bus |
| I²C bus (fast mode, 400 kHz, multimaster) |
| 电源类型 | Typ. applicatin: tbd., see manual for full details, CMOS Battry Backup,ACPI 4.0 with battry support |
| 工作温度 | 0℃ ～ 60℃ |
| 存储温度 | -20℃ ～ 80℃ |
| 相对湿度 | 5%-95%(无凝霜) |
| 尺寸 | 95 x 125mm (3.74"x 4.92") |
