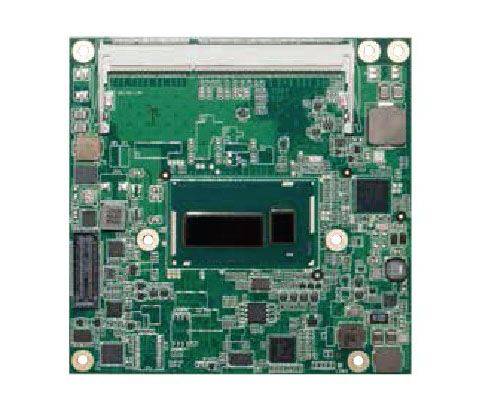

| 产品型号 | COME-QM872 |
| CPU型号 | Intel® 第四代® i3/i5/i7 |
| 芯片 | Integrated mobile Intel® 8 Series Chipset: Intel® QM87/HM86 @ planned Celeron variants |
| 内存 | 2 Sockets, SO-DIMM DDR3L@1.35V up to 1600MT/s and 16GByte |
| 网络接口 | Intel® I218-LM GbE LAN Controller with AMT 9.5 support |
| 扩展接口 | N/A |
| 显示接口 | VGA插针+HDMI插针+DVI插针+DP插针 |
| 音频 | Digital High Defiitin Audio Interface with support for multile audio codecs |
| COM接口 | 1*COM |
| 风扇 | 无风扇 |
| 看门狗 | 1-255秒/分，看门狗超时中断或复位系统 |
| I/O接口 | 4x PCI Express™ GEN. 2.0 lanes, 4x Serial ATA® RAID 0/1/5/10 support, |
| 2x ExpressCard®, 2x USB 3.0 (XHCI), 8x USB 2.0 (EHCI) |
| LPC bus, I²C bus (fast mode, 400 kHz, multimaster) |
| 电源类型 | Typ. applicatin: tbd., see manual for full details, CMOS Battry Backup ACPI 4.0 with battry support |
| 工作温度 | 0℃ ～ 60℃ |
| 存储温度 | -20℃ ～ 80℃ |
| 相对湿度 | 5%-95%(无凝霜) |
| 尺寸 | 95x95 mm (3.74"x 3.74") |
