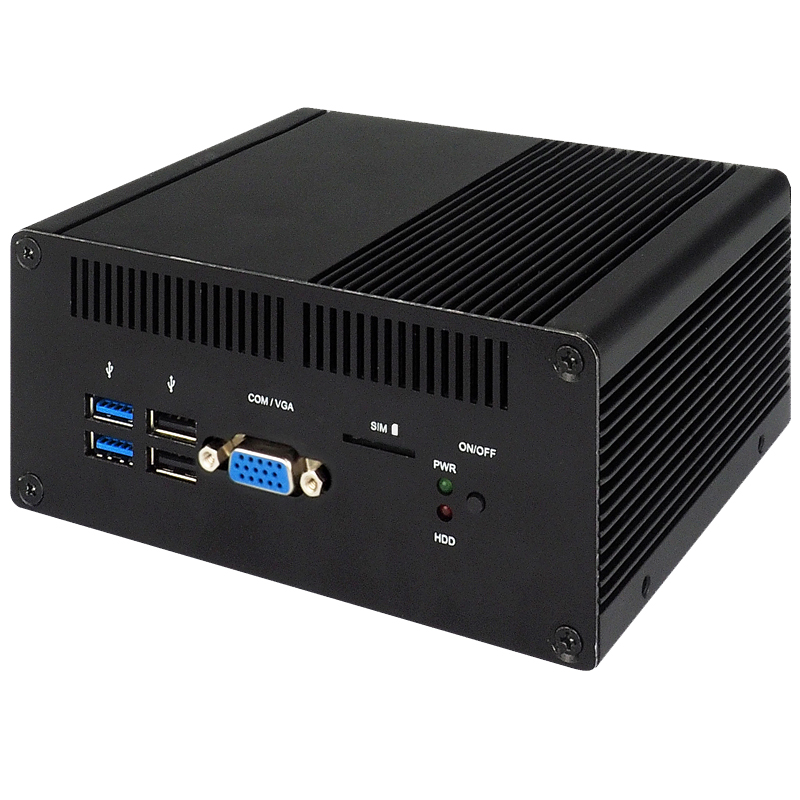

  • EPC-702-无风扇嵌入式工控机

  • EPC-702-无风扇嵌入式工控机

    Intel® Skylake/Kabylake U系列处理器
    2 * 260-pin Dual-channel DDR4 2133MHz SO-DIMM 支持32 GB
    2 * USB2.0, 6 * USB3.0, 1 * COM, 1 * DP, 1 * HDMI, 2 * RJ45,
    1 *音源输入, 1 * 麦克风+音源输出组合
    主板板型: uTX (117x112mm)
    DC-12V_60W 电源

    品牌：研强

    型号：EPC-702

    起订量：1

    单位：台


    • 0.00
      0.00
商品描述

Intel® Skylake/Kabylake U系列处理器
2 * 260-pin Dual-channel DDR4 2133MHz SO-DIMM 支持32 GB
2 * USB2.0, 6 * USB3.0, 1 * COM, 1 * DP, 1 * HDMI, 2 * RJ45,
1 *音源输入, 1 * 麦克风+音源输出组合
主板板型: uTX (117x112mm)
DC-12V_60W 电源

品牌：研强

型号：EPC-702

起订量：1

单位：台


产品单页详情下载请点击

提取码：1111

Intel® Skylake/Kabylake U系列处理器
2 * 260-pin Dual-channel DDR4 2133MHz SO-DIMM  支持32 GB
2 * USB2.0, 6 * USB3.0, 1 * COM, 1 * DP, 1 * HDMI, 2 * RJ45,1 *音源输入, 1 * 麦克风+音源输出组合
主板板型: uTX (117x112mm)
DC-12V_60W 电源

MB ModelJNU792C-7100 Core i3-7100U Processor (Default)
MB ModelJNU792V-3965 Celeron 3965U Processor
BIOSAMI 16MB SMT Flash ROM
CPU/ChipsetIntel® Skylake/Kabylake U-series Processor (TDP15W)
CPU/ChipsetNotes : When the system runs, CPU will automatically adjust
CPU/Chipsetits working clock frequency according to changing workload.
Memory2 * 260-pin Dual-channel DDR4 2133MHz SODIMM up to 32GB
Storage1 * 2.5” SATAIII 6Gb/s internal drive bay (only support 2.5″
StorageHDD with a height ≤ 10mm)
Storage1 * full-size mSATA/Mini-PCIe shared slot
Network1 * Intel i211AT GbE, 1 * Intel i219LM GbE
Network1 * half-size Mini-PCIe slot (for WiFi model installed)

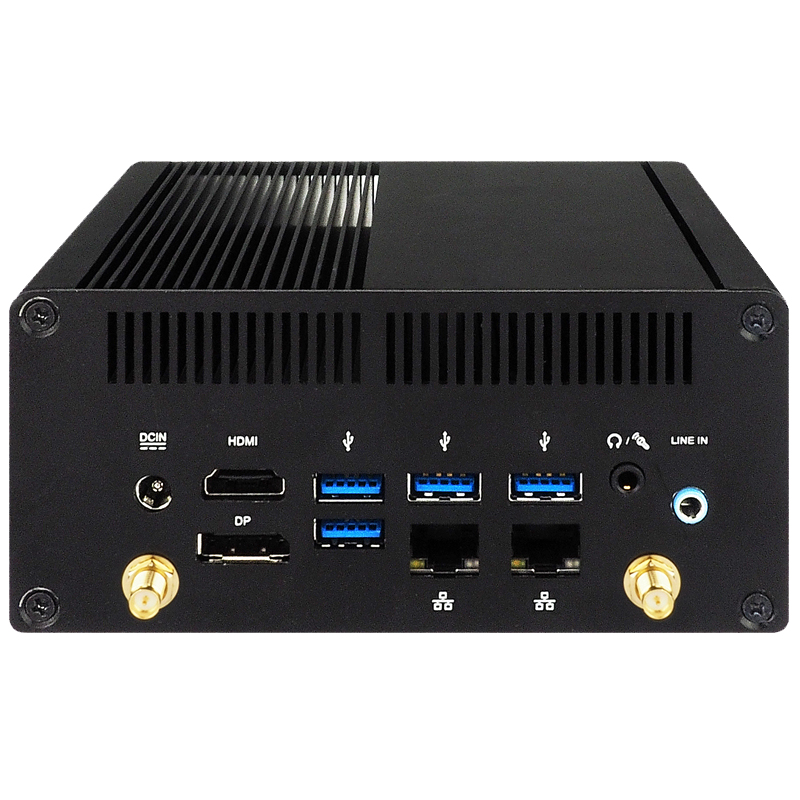

Rear Panel I/O4 * USB3.0 (COM Series)
Rear Panel I/O2 * USB3.0, 2 * USB2.0 (VGA Series)
Rear Panel I/O1 * HDMI 1.4 (max. 4096 x 2304@24Hz resolution)
Rear Panel I/O1 * DP (Max. 4096 x 2304@60Hz resolution) (COM Series)
Rear Panel I/O2 * RJ45
Rear Panel I/O1 * Line-in, 1 * MIC+Line-out Combo (Realtek ALC662VD)
Rear Panel I/O2 * Antenna holes (WiFi only)
Rear Panel I/O1 * DC-in jack

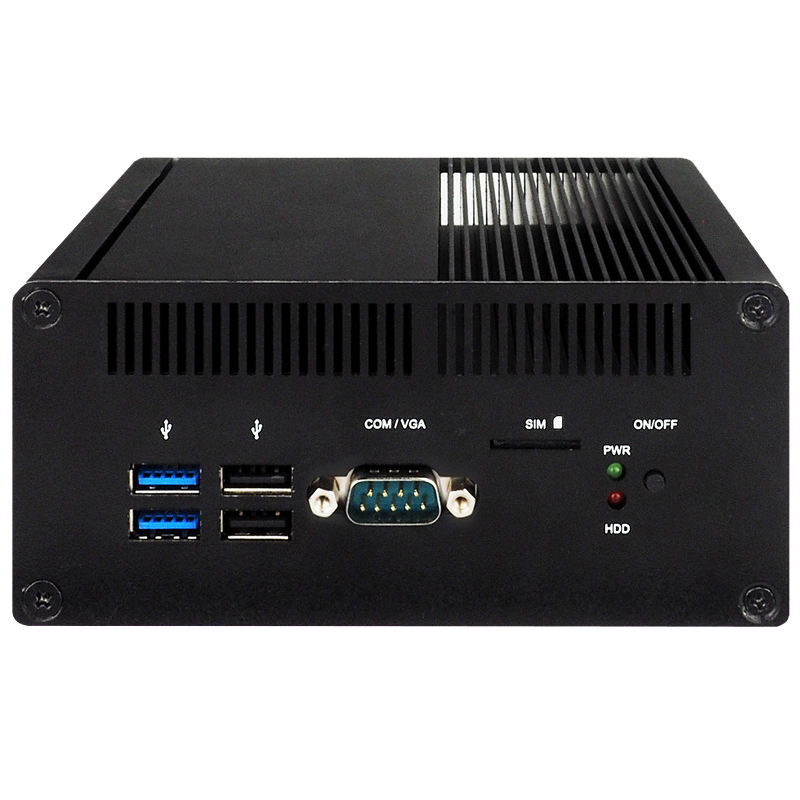

Front Panel I/O1 * Power button
Front Panel I/O1 * Power LED, 1 * HDD LED
Front Panel I/O1 * SIM Card Slot
Front Panel I/O2 * USB2.0, 2 * USB3.0
Front Panel I/O1 * COM (RS232/422/485) (COM Series only)
Front Panel I/O1 * VGA (Max. resolution: 1920 x 1200@60Hz) (VGA Series only)
Power SourceAC to DC Adapter / DC12V_5A_60W
Power SourceAC 90~240V input
ComplianceCE, FCC, LVD, RoHS, ErP Ready
TemperatureOperating Temperature: -20 ~ 60° C (Under the condition
Temperatureof using mSATA or SSD)
TemperatureOperating Temperature: 0 ~ 50° C (Under the condition
Temperatureof using 2.5” SATA HDD)
Temperature(The test environment is closed and windless)
TemperatureStorage Temperature: -20 ~ 70° C
HumidityBetween 40% and 60%, non-condensing
Dimensions144 (W) x 116.9 (D) x 65 (H) mm
PackingNet Weight: 1.8KG
PackingGross Weight: 2.8KG
PackingColor Box dimension: 250 (W) * 118 (D) * 295 (H) mm
OS SupportSkylake-U CPU support Win7, Win8, Win10.
OS SupportKabylake-U CPU only support Win10.
Warranty2 Year limited warranty
