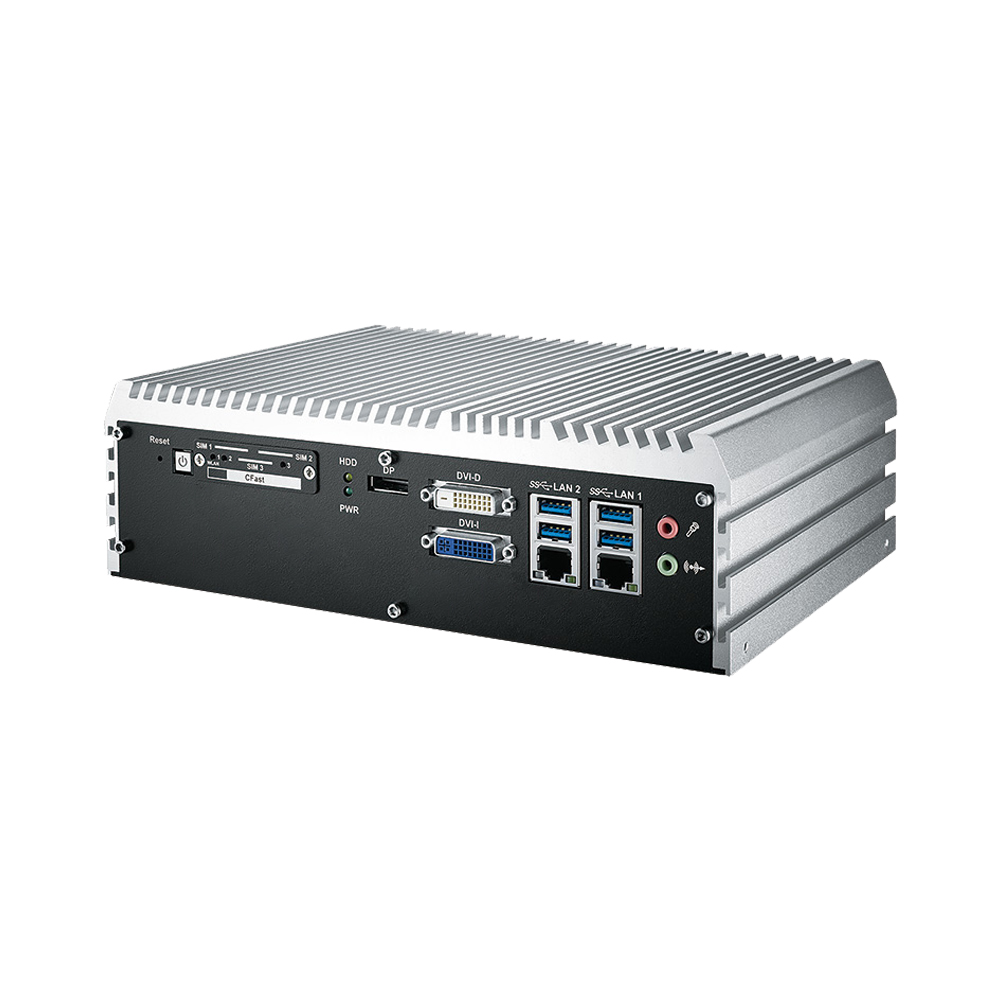

  • EPC-6909-POE-无风扇嵌入式工控机

  • EPC-6909-POE-无风扇嵌入式工控机

    LGA 1151 Socket supports workstation-grade Intel® Xeon®/Core™ i7/i5/i3 Processor with Intel® C236 Chipset
    Fanless, -40°C to 75°C Operating Temperature
    6 GigE LAN with 4 IEEE 802.3at PoE+, iAMT 11.0 supported
    DVI-I, DVI-D and DisplayPort display interface, up to 4K display

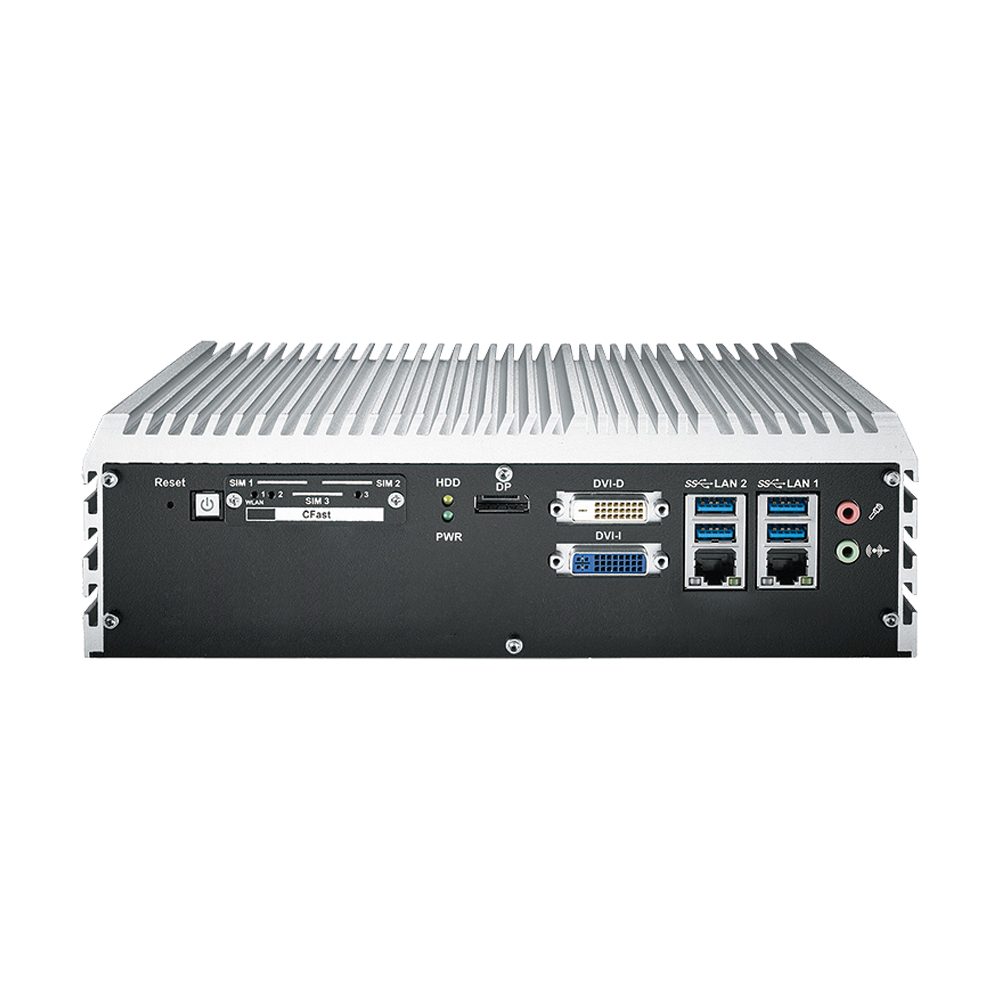

    Front-access : 3 SIM Socket, 1 CFast, 4 USB 3.0
    3 Mini PCIe for WiFi/4G/3G/LTE/GPRS/UMTS
    M2DOM supports up to 8GT/s data rate
    16 Isolated DIO, 4 COM, 6 USB 3.0
    6V to 36V DC Power Input with 80V Surge Protection
    Configurable Ignition Power Control

    • 0.00
      0.00
商品描述

LGA 1151 Socket supports workstation-grade Intel® Xeon®/Core™ i7/i5/i3 Processor with Intel® C236 Chipset
Fanless, -40°C to 75°C Operating Temperature
6 GigE LAN with 4 IEEE 802.3at PoE+, iAMT 11.0 supported
DVI-I, DVI-D and DisplayPort display interface, up to 4K display
Front-access : 3 SIM Socket, 1 CFast, 4 USB 3.0
3 Mini PCIe for WiFi/4G/3G/LTE/GPRS/UMTS
M2DOM supports up to 8GT/s data rate
16 Isolated DIO, 4 COM, 6 USB 3.0
6V to 36V DC Power Input with 80V Surge Protection
Configurable Ignition Power Control

产品单页详情下载请点击

提取码：1111

LGA 1151 Socket supports workstation-grade Intel® Xeon®/Core™ i7/i5/i3 Processor with Intel® C236 Chipset
Fanless, -40°C to 75°C Operating Temperature
6 GigE LAN with 4 IEEE 802.3at PoE+, iAMT 11.0 supported
DVI-I, DVI-D and DisplayPort display interface, up to 4K display
Front-access : 3 SIM Socket, 1 CFast, 4 USB 3.0
3 Mini PCIe for WiFi/4G/3G/LTE/GPRS/UMTS
M2DOM supports up to 8GT/s data rate
16 Isolated DIO, 4 COM, 6 USB 3.0
6V to 36V DC Power Input with 80V Surge Protection
Configurable Ignition Power Control

System
ProcessorIntel® Xeon®/Core™ i7/i5/i3 Processor (Kaby Lake-S/Skylake-S)
ChipsetIntel® C236
BIOSAMI
SIOIT8786E
Memory2 DDR4 2400/2133 MHz SO-DIMM, up to 32GB
I/O Interface

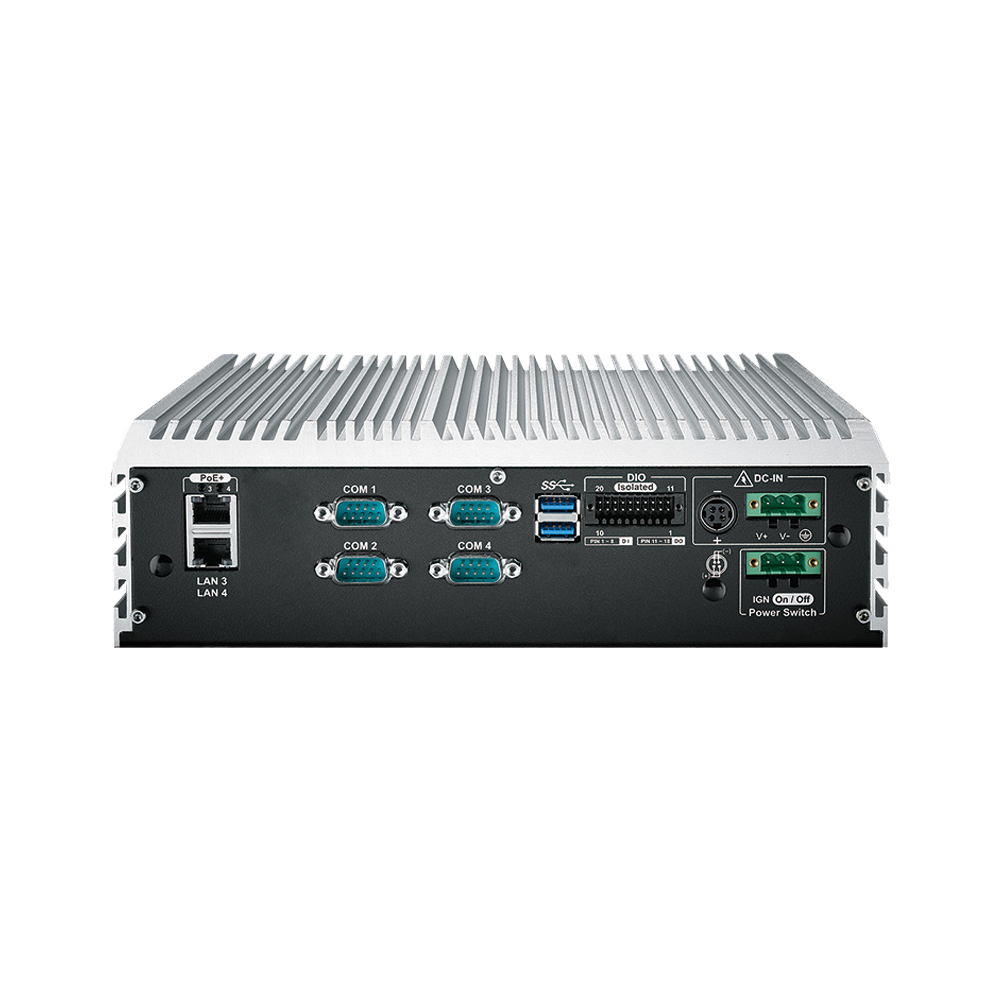

Serial4 COM RS-232/422/485
USB6 USB 3.0 (External)
1 USB 2.0 (Internal)
Isolated DIO16 Isolated DIO : 8 DI, 8 DO
LEDPower, HDD, Wireless, PoE
SIM Card3 SIM Card Socket (External)
Expansion
Mini PCIe3 Mini PCIe Socket :
2 Full-size for PCIe/USB/External SIM Card/mSATA
1 Half-size for PCIe/USB 3.0/External SIM Card
SUMIT A, B2 SUMIT Slot (Optional)
Graphics
Graphics ProcessorIntel® HD Graphics P630/630/P530/530
Display MemoryShared Memory, up to 1.7GB
InterfaceDVI-I : Up to 1920 x 1200 @ 60Hz
DVI-D : Up to 1920 x 1200 @ 60Hz
DisplayPort : Up to 4096 x 2304 @ 60Hz
Storage
SATA2 SATA III (6Gbps)
mSATA2 SATA III (Mini PCIe Type, 6Gbps)
SATA DOM1 SATA II (3Gbps)
M2DOM1 PCIe 3.0 (8GT/s)/SATA III (6Gbps)
Storage Device1 CFast Socket, Push-in/Push-out Ejector
2 2.5" SSD/HDD Bracket (Internal)
Audio
Audio CodecRealtek ALC892, 5.1 Channel HD Audio
Audio Interface1 Mic-in, 1 Line-out
Ethernet
LAN 1Intel® I219LM GigE LAN supports iAMT 11.0
LAN 2Intel® I210 GigE LAN
PoE
LAN 3GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 4GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 6GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
Power
Power Input6V to 36V, DC-in
Power Interface3-pin Terminal Block : V+, V-, Frame Ground
Mini-DIN 4-pin
Ignition Control16 Mode (Internal)
Remote Switch3-pin Terminal Block : On, Off, IGN
Surge ProtectionUp to 80V/1ms Transient Power
Others
TPMOptional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog TimerReset : 1 to 255 sec./min. per step
Smart ManagementWake on LAN, PXE supported
HW MonitorMonitoring temperature, voltages. Auto throttling control when CPU overheats.
Software Support
OSWindows 10, Windows 8.1, Windows 7, Linux
Mechanical

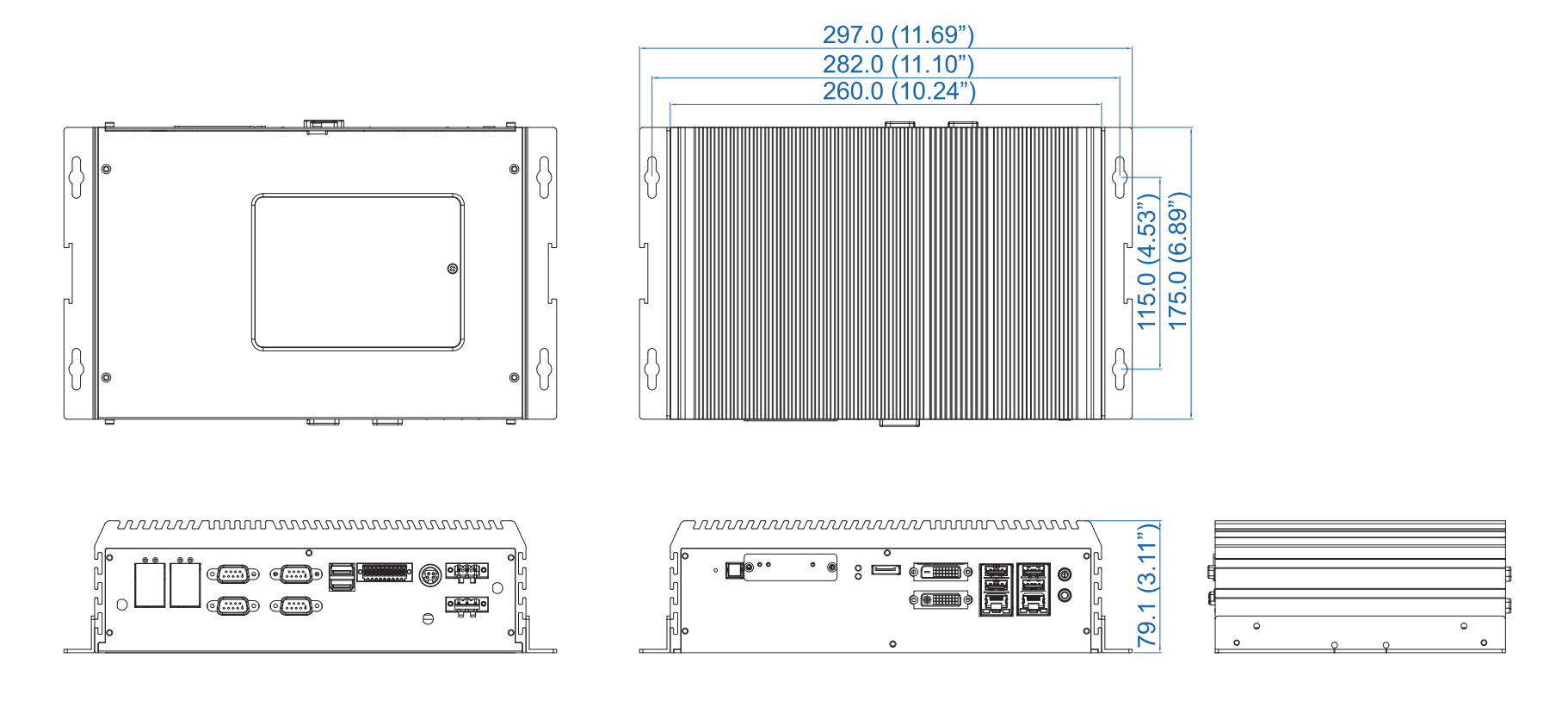

Dimensions (W x L x H)260mm x 175mm x 79mm (10.24" x 6.89" x 3.11")
Weight3.8 kg (8.38 lb)
MountingWallmount by mounting bracket
DIN Rail Mount (Optional)
2U Rackmount (Optional)
Environment
Operating Temperature35W TDP CPU :
Core™ i7, i5, i3 : -40°C to 75°C (-40°F to 167°F)
Xeon® E3-1268L v5 : -40°C to 70°C (-40°F to 158°F)
65W TDP CPU :
Core™ i7, i5, i3 : -40°C to 55°C (-40°F to 131°F)
80W TDP CPU :
Xeon® E3-1275 v6, E3-1275 v5, E3-1225 v5 : -40°C to 45°C (-40°F to 113°F)
Storage Temperature-40°C to 85°C (-40°F to 185°F)
Humidity5% to 95% Humidity, non-condensing
Relative Humidity95% @ 70°C
ShockIEC 60068-2-27

SSD : 50G @ wallmount, Half-sine, 11ms
VibrationƒIEC 60068-2-64
SSD : 5Grms, 5Hz to 500Hz, 3 Axis
CertificationCE, FCC, EN50155, EN50121-3-2
