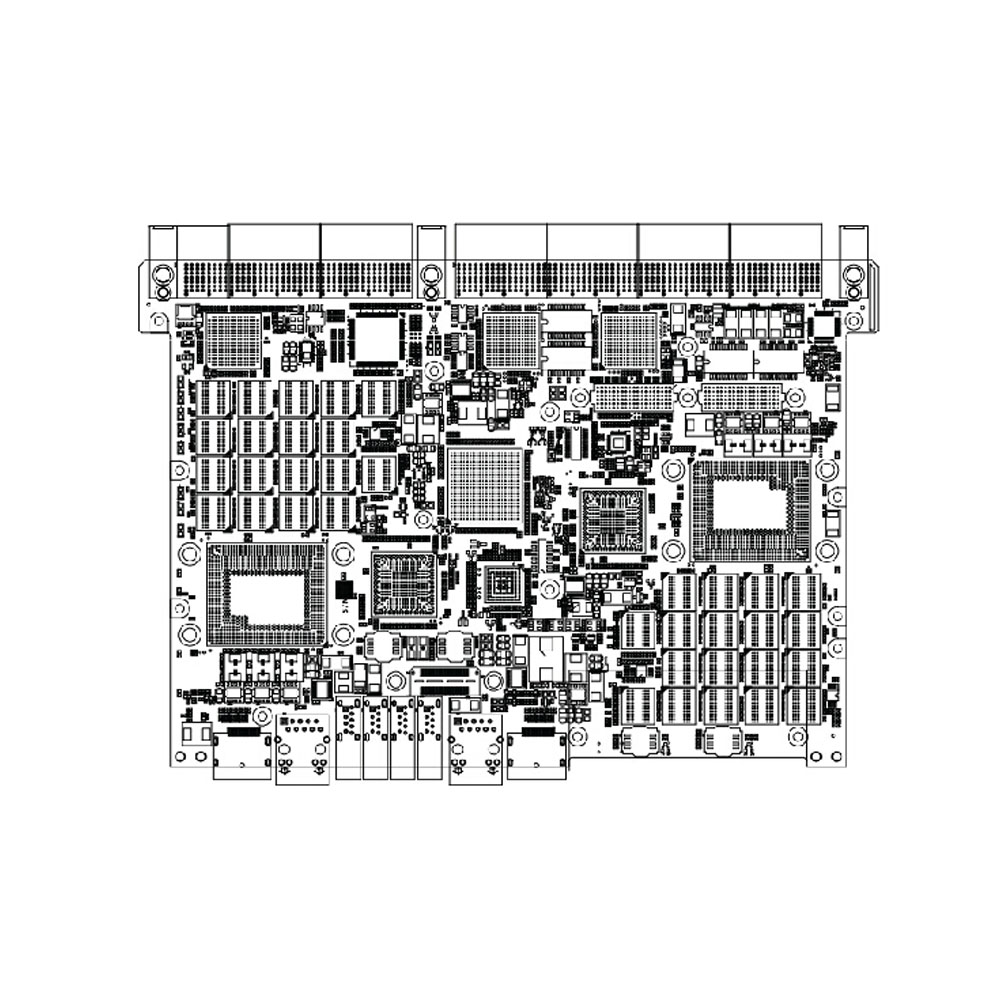

  • VPX-8706

  • VPX-8706

    Dual Quad‐core 4th generation FC‐BGA Intel® Core™ i7 Processor

    Dual channel DDR3 ECC memory soldered, 16GB per CPU

    1x Gen3 PCI Express x16 for expansion plane, Non-transparent bridge (NTB) support

    4x 10 Gigabit Ethernet for data plane

    2x 1000BASE-T and 2x 1000BASE-BX/KX for control plane

    • 0.00
      0.00
商品描述

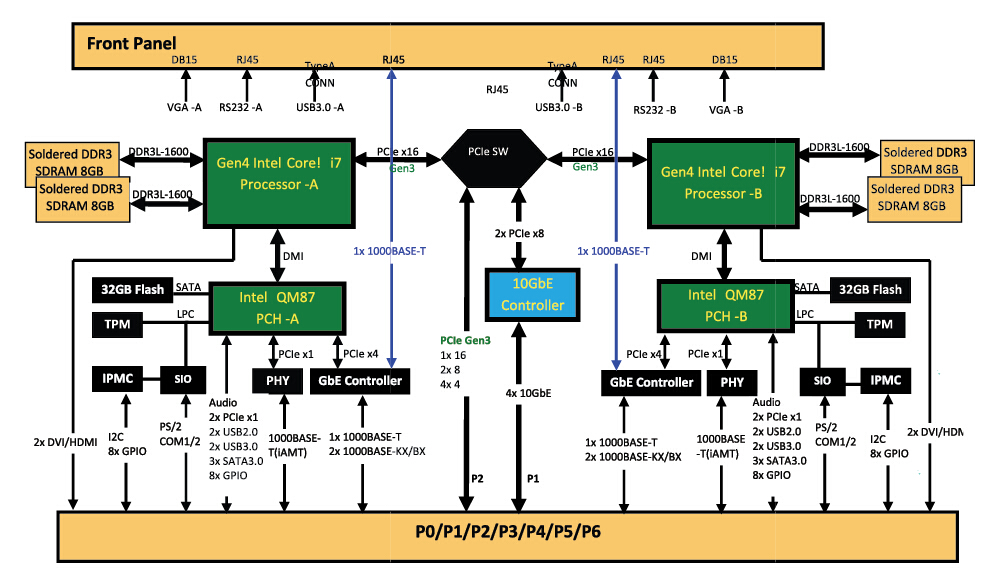

Dual Quad‐core 4th generation FC‐BGA Intel® Core™ i7 Processor

Dual channel DDR3 ECC memory soldered, 16GB per CPU

1x Gen3 PCI Express x16 for expansion plane, Non-transparent bridge (NTB) support

4x 10 Gigabit Ethernet for data plane

2x 1000BASE-T and 2x 1000BASE-BX/KX for control plane

技术参数Main Feature
ProcessorSingle or Dual quad‐core Intel® Core i7‐4700EQ Processor, 2.4/1.7 GHz, 6MB L3 cache, TDP 47/37W,uFC‐BGA
Platform Controller HubIntel® QM87 Express Chipset
MemoryDual Channel DDR3‐L 1600, support ECC, 16GB per CPU
GraphicsIntegrated in Intel Processor:
     ·One VGA port on front panel per CPU
   ·Two DVI/HDMI routed to rear per CPU
BIOSAMI® EFI BIOS, 64Mbit SPI Flash
Front Panel Functions
Gigabit Ethernet1x 10/100/1000BASE-T Port(RJ45) per node
USB Interface1xUSB3.0 Type-A connector per node
Serial1xRS232(RJ45) serial port per node
DisplayDisplay 1x VGA D-Sub connector per nod
Button1x system reset button per node
Status LEDPower, Port 80, Hard disk
Onboard Interface
SATA / NAND Flash·1x SATA 6Gb/s direct connector for 2.5" disk or other storage device
   ·1x onboard NAND Flash, 32GB SLC per node
VPX Rear I/O
P14x Fat Pipes 10GbE with RDMA to P1 for Data Plane
P2x16 PCI Express Gen3/Gen2/Gen1, up to 8GT/s, support the following
     configuration:
   ·1x PCIe x16   ·2x PCIe x8   ·1x PCIe x8 and 2x PCIe x4    ·4x PCIe x4
P32x 1000BASE-T and 2x 1000BASE-KX/BX for control plane
     For Node B rear I/Os:
   ·PCIe x1        ·SATA 3.0       ·USB 3.0                                          ·PS/2,LPC,GPIO
P5For Node A rear I/Os:
   · 1000BASE-KX/BX                    · 1000BASE-T                   · SATA 3.0                · USB 2.0                  · Audio, COM
P6For Node B rear I/Os:
   · 1000BASE-KX/BX                   · 1000BASE-T                    · SATA 3.0                · USB 2.0                  · Audio, COM
Mechanical & Environmental
Form Factor6U 4HP, 0.85"
     233.33mm x 160mm (LxW)
   Equipped with P0/P1/P2/P3/P4/P5/P6 connectors
Power· Vs1: +12 VDC                         · Vs2: +12 VDC                    · Vs3: +5 VDC          · AUX: +3.3VDC
Operating Temperature· Conduction-cooled: -40°C to +75°C (at wedge-lock)                                  · Air-cooled: 0°C to +75°C (ambient temperature)
CoolingAir or Conduction cooling support
Storage Temperature-50°C to 100°C
RH Humidity95% non-condensing
Shock· Sawtooth 40G, 11ms , each axis, operating (conduction cooled ONLY)
   · Sawtooth 20G, 11ms , each axis, operating (air cooled)
Vibration· 15Hz~2KHz,12 Grms random vibration, each axis,operating(conduction cooled ONLY)
   · 10Hz~2KHz, random sine: 2G, 5~500Hz, operating(air cooled)
Safety&EMICE/FCC Class A
Compliancy
VPX· VITA 46.0 VPX Base Standard
     · VITA 46.4 PCI Express on VPX Fabric Connector
     · VITA 46.6 Gigabit Ethernet Control Plane on VPX
     · VITA 46.9 PMC/XMC Ethernet Signal Mapping to 3U/6U VPX
     · VITA 46.10 Rear Transition Module on VPX
     · VITA 46.11 (Draft)System Management on VPX
   · VITA 48.0 Ruggedized Enhanced Design Implementation
Module ProfileMOD6-PAY-4F1Q2U2T-12.2.1-8
Slot ProfileSLT6-PAY-4F1Q2U2T-10.2.1
Operating System
OS· Microsoft Windows ® 7 32/64bit
     · Linux
     · Wind River VxWorks 6.9.3
Note: Contact Comatech for other OS support
