| 规格参数 | I/O Table |

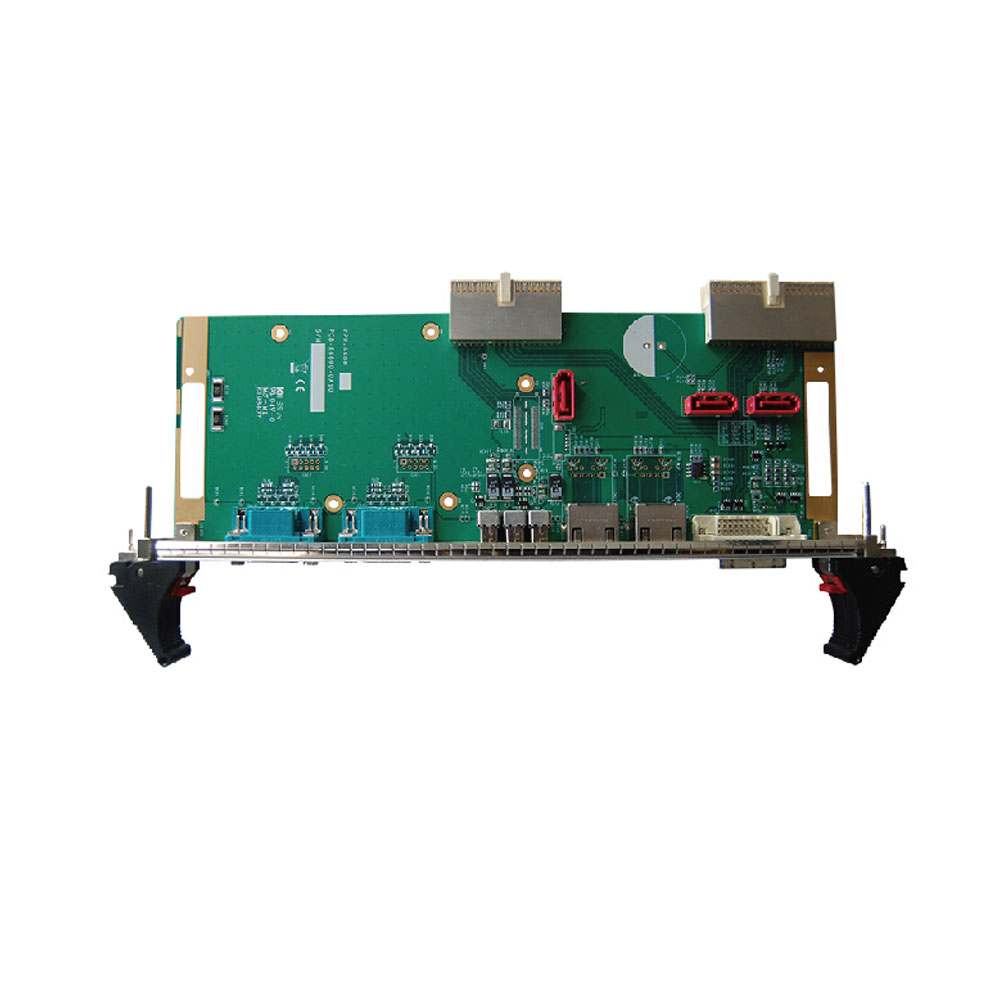

| cPR-7701 | cPR-7702 | cPR-7703 | cPR-7704 |
| (4HP) | (8HP) | (4HP) | (4HP) |

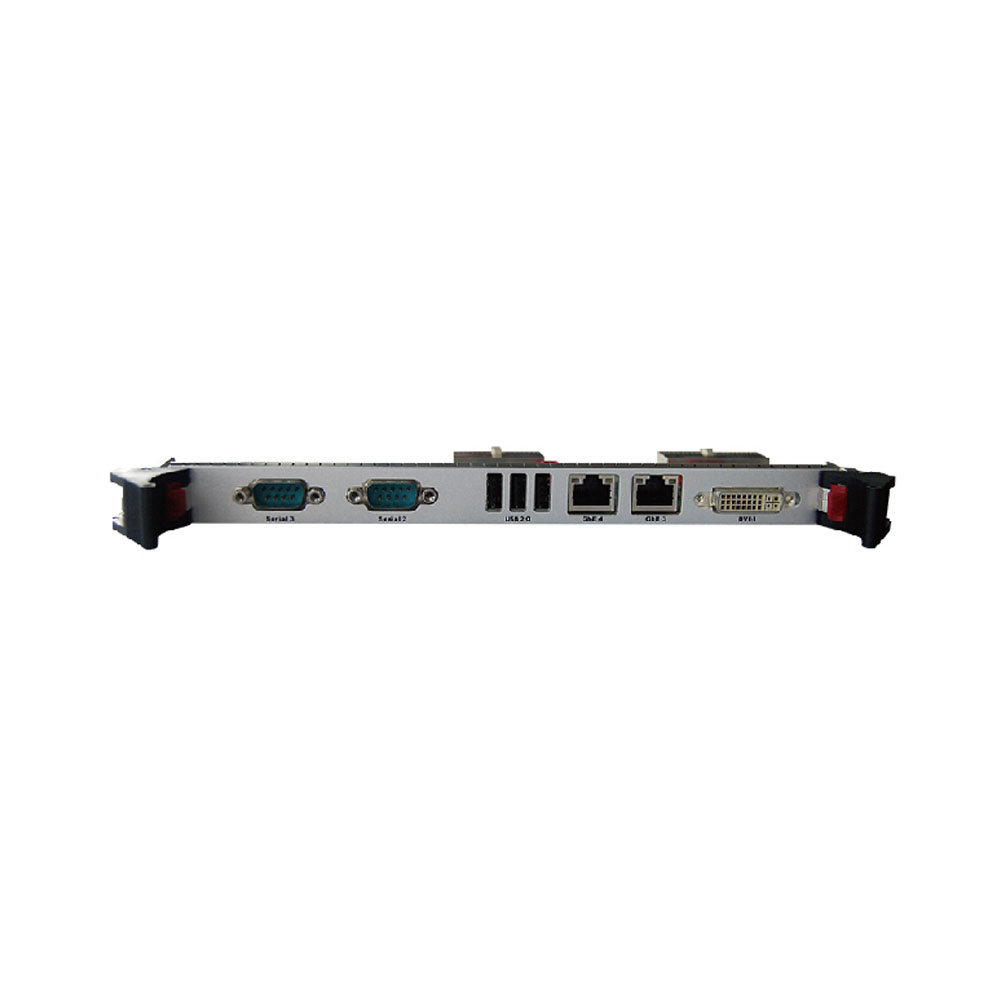

| Faceplate | Onboard | Faceplate | Onboard | Faceplate | Onboard | Faceplate | Onboard |
| GbE | 2 |
| 2 |
| 2 |
| 2 |
|
| USB2.0 | 3 |
| 3 |
| 3 |
| 3 |
|
| COM | 2 |
| 4 |
| 4 |
| 1 |
|
| DVI | 1(1) |
| 1(1) |
| 2(3) |
| 1(1) |
|
| VGA | 1(1) |
| 1(1) |
|
|
| 1(1) |
|
| DP |
|
|
|
|
|
|
|
|
| SATA |
| 4(2) |
| 4(2) |
| 3 |
| 3 |
| CFast |
|
|
|
|
|
|
|
|
| CF |
|
|
|
|
|
|
|
|
| Mic-in |
|
|
|
|
|
|
|
|
| Line-out |
|
|
|
|
|
|
|
|
| Line-in |
|
|
|
|
|
|
|
|
| PS/2 |
|
|
|
|
|
|
|
|
| KB/MS |
| SD |
|
|
|
|
|
|
|
|
| SAS |
|
|
|
|
|
| 4(SFF-8088) | 4(SFF-8087) |
| Ordering Information |
| Article | Description |
| cPCI-7700SA | > Quad-core 2.3GHz, i7-3615QE | > Temperature range 0°C to 60°C |
| > 8GB soldered memory and SODIMM with ECC | > Rugged air cooled |
| > 64GB onboard NAND Flash (MLC) |
|
| cPCI-7700RA | > Dual-core 2.5GHz, i7-3555LE | > Temperature range -40°C to 70°C |
| > 4GB soldered memory and SODIMM with ECC | > Rugged air cooled |
| > 32GB onboard NAND Flash (MLC) |
|
| cPCI-7700RV | > Dual-core 1.7GHz, i7-3517UE | > Temperature range -40°C to 70°C |
| > 4GB soldered memory and SODIMM with ECC | > Rugged air cooled |
| > No onboard NAND Flash |
|
| cPCI-7700RC | > Dual-core 2.5GHz, i7-3555LE | >Temperature range -40°C to 70°C |
| > 4GB soldered memory and SODIMM with ECC | > Rugged conduction cooled |
| > 32GB onboard NAND Flash (SLC) |
|
| cPCI-7700V | > Dual-core 1.8GHz, Celeron 1037U | >Temperature range 0°C to 60°C |
| > SODIMM with ECC | > Rugged air cooled |
| > 8GB onboard NAND Flash (MLC) |
|
